Wire Stripping and Pre-insulated Chain Terminals Crimping Machine

This is a semi-automatic wire stripping and chain terminal crimping machine. It can automatically strip the cable sheath and crimp the pre-insulated chain cable terminals to the cable at the same time.

Model:
  • YH-BRX01
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Applicable wire: Pre-cut electronical cables and flat cables, pre-cut and stripped data cables, power cables and other sheathed cables.

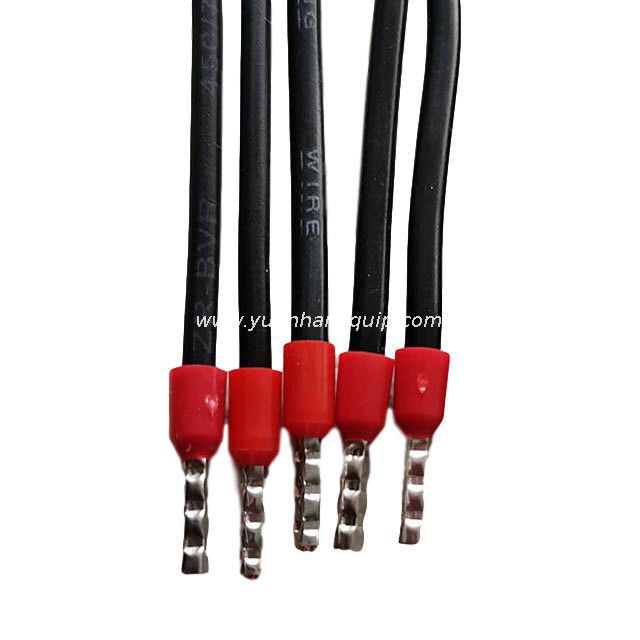

  • Applicable terminal: cold press chain cable terminals

  • Product features: automatically strip cables and crimp terminals.

  • Using high-speed programmable controller and color touch screen control system, the structure is exquisite, the operation is simple, and it is easy to learn and understand.

  • Adopting Japanese SHINANO stepping motor, high precision and fast speed.

  • Using Japanese Omron, Panasonic, Keyence and other electrical accessories to ensure the equipment is durable.

  • Suitable for crimping pre-insulated chain cable terminals.

  • Adopt the patented terminal machine that is positioned first and then crimped.

  • Use inner and outer guide sleeves to ensure that the copper wire does not buckle after the wire passes through the terminal.

ModelYH-BRX01
Production capacity800-1,200 pieces/hour or more (depending on the proficiency of the operator)
Applicable wire∮ 1.5-3.0mm or ∮ 3.0-6.0mm
Stripping length1-10mm or 3-20mm
Crimping pressure∮ 1.5-3.0mm standard configuration is 2.0T, ∮ 3.0-6.0mm standard configuration is 3.0T
Input powersingle-phase AC 220V 1000W
Air source requirements5-6Kgf or more (dry, clean air is required)
Applicable moldpneumatic feeding mold for cold crimp terminal



×
