Fully-auto 3-Pin Power Cord Male & Female Head Production Line
Fully-auto 3-Pin Power Cord Male & Female Head Production Line
Fully-auto 3-Pin Power Cord Male & Female Head Production Line
Fully-auto 3-Pin Power Cord Male & Female Head Production Line
Fully-auto 3-Pin Power Cord Male & Female Head Production Line

Fully-auto 3-Pin Power Cord Male & Female Head Production LineFully-auto 3-Pin Power Cord Male & Female Head Production Line

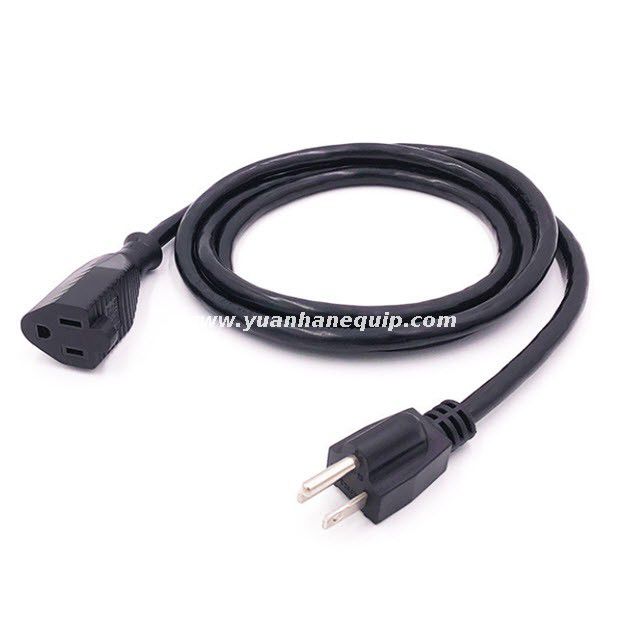

This 3-pin power cord male and female head production line can process wire feeding, fixed-length cutting, wire 2-side stripping and plug crimping automatically.

Model:
  • YH-880GP/YH-980
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

  • Digitally controlled by PLC, servo motor, electrical, and touch screen.

  • Simple operation, saving manpower and increasing output.

  • Equipment configuration: adopts Taiwan AirTAC pneumatic components, Panasonic PLC controller, Taiwan ABBA linear guideway and Panasonic servo motor.

  • Head machine function: wire feeding, wire cutting and head stripping, CCD automatic color discrimination, core wire separation, core molding and stripping, CCD color confirmation(If the color error is detected, the crimping will not be processed.), inner frame crimping, CCD inspection, copper wire leakage and polarity re-inspection.

  • Tail machine function:wire grabbing, wire tail stripping, CCD automatic color discrimination, core wire separation, core molding and stripping, CCD color confirmation(If the color error is detected, the crimping will not be processed.), inner frame crimping, CCD inspection, copper wire leakage and polarity re-inspection.

ModelYH-880GP/YH-980
VoltageAC220V/50HZ-380V
Crimping force4T
Yield rate≥99% Wire cutting + head stripping + tail stripping + head crimping + tail crimping
Air pressure0.45-0.65MPa
Productivity700-800pcs/H(2-3m),900-1100pcs/H(<2m)
Weight3000KG
Dimension5800MM*2100MM*1860MM
