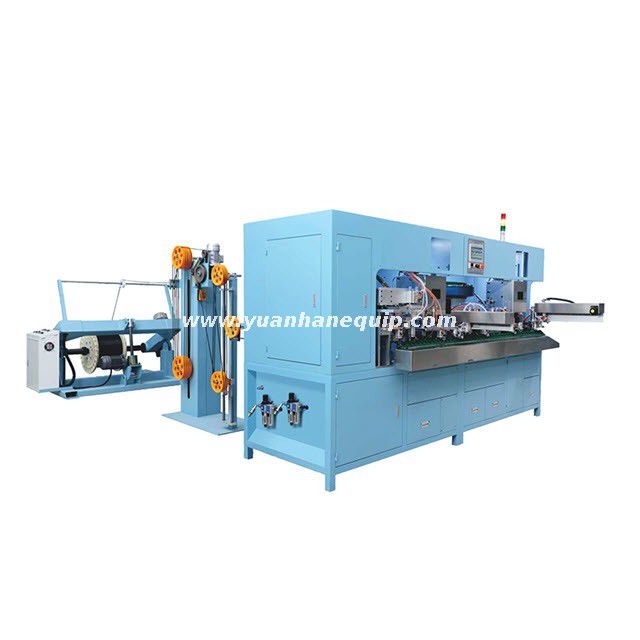

Automatic Chinese Standard Two-pin Plug Riveting MachineAutomatic Chinese Standard Two-pin Plug Riveting Machine

The automatic chinese standard two-pin plug riveting machine can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic vibrating plate feeding, and rivet pressing at one time.

Model:
  • YH-280-G
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic vibrating plate feeding + rivet pressing.

  • Features man-machine interface debugging, the whole machine is controlled by PLC and inverter, variable frequency motor, and the performance is stable.

  • Simple, safe and efficient operation.

  • Applicable wires: H03VVH2-F H05VVH2-F

ModelYH-280-G
Capacity2300-2600pcs/h
Riveting force3T
Yield99.8%
Operating air pressure0.5-0.8MPa
VoltageAC220V/50HZ
Power1.5kw/h
Machine weight350kg
Machine size1130mm*830mm*1650mm



×
