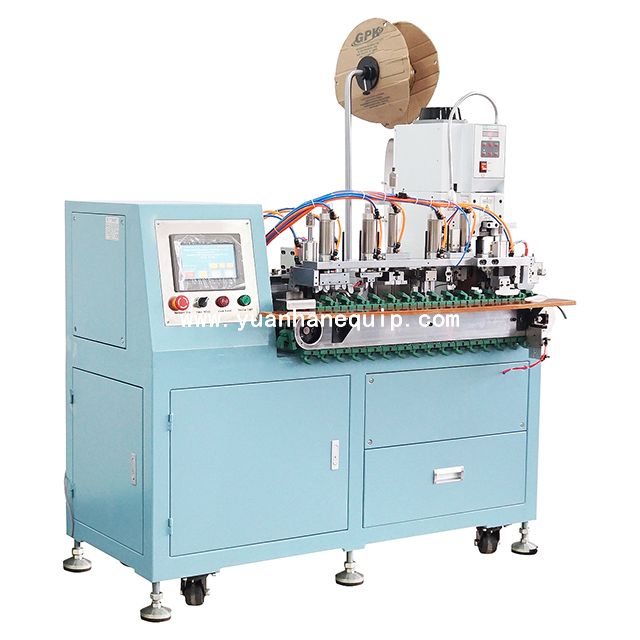

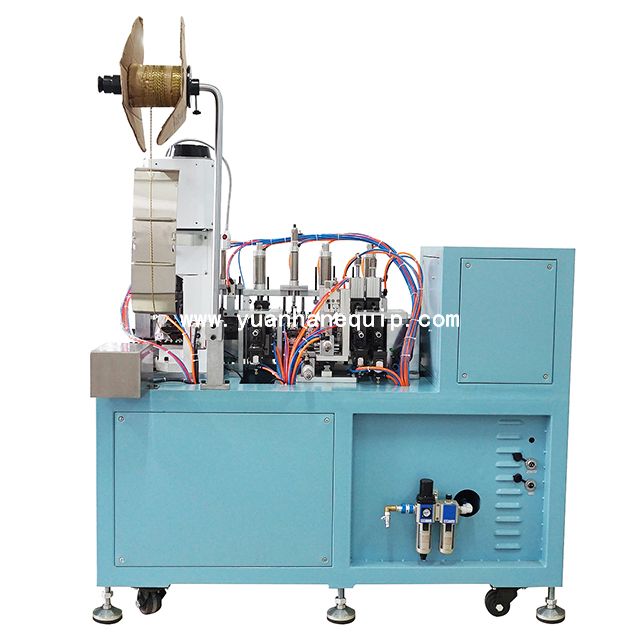

Automatic Plug Pins Continuous Crimping MachineAutomatic Plug Pins Continuous Crimping Machine

The automatic plug pins continuous riveting machine can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic vibrating plate feeding, and plug pins riveting at one time.

Model:
  • YH-580
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic vibrating plate feeding + rivet pressing.

  • Features man-machine interface debugging, the whole machine is controlled by PLC and inverter, variable frequency motor, and the performance is stable.

  • Simple, safe and efficient operation.

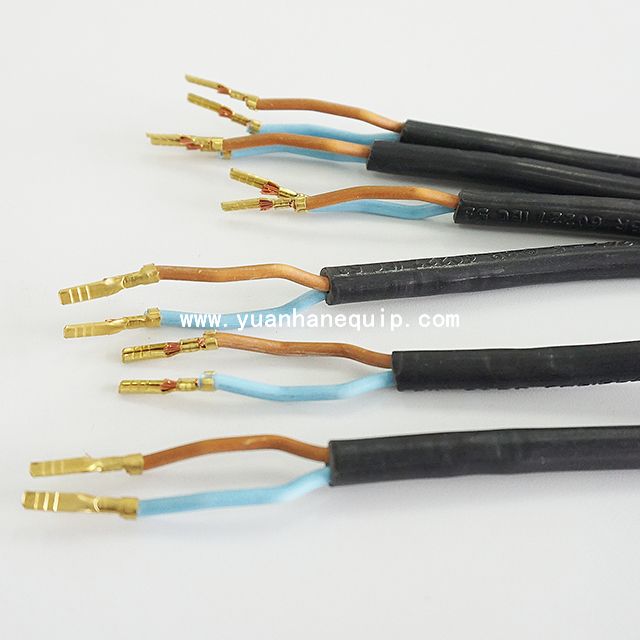

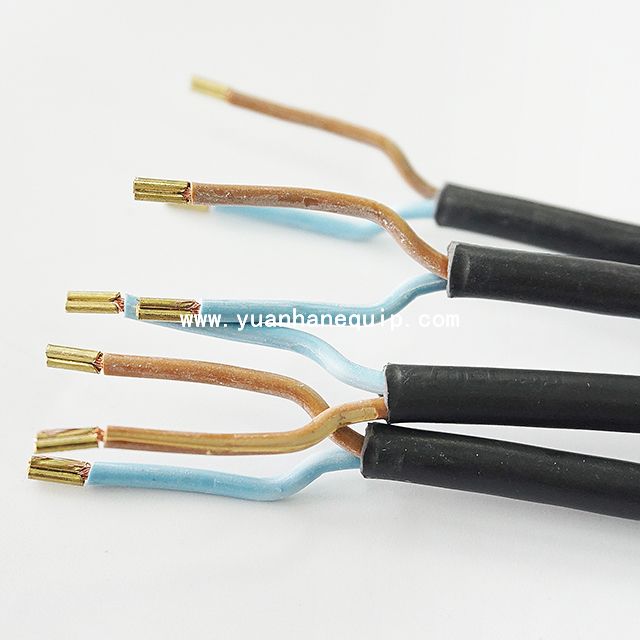

  • Applicable wires:

    SPT-1SPT-2NISPT-1NISPT-2VFFHVFFVCTFKH03VVH2-FH05VVH2-FRVV

ModelYH-580
Capacity2,300-2,600PCS/H
Riveting force3T
Yield99.8%
Inner wire stripping diameter4-7mm
VoltageAC220V/50HZ
Operating air pressure0.5-0.7Mpa
Power1.6kw/h
Machine weight276KG
Machine size900mm*560mm*1470mm






×
