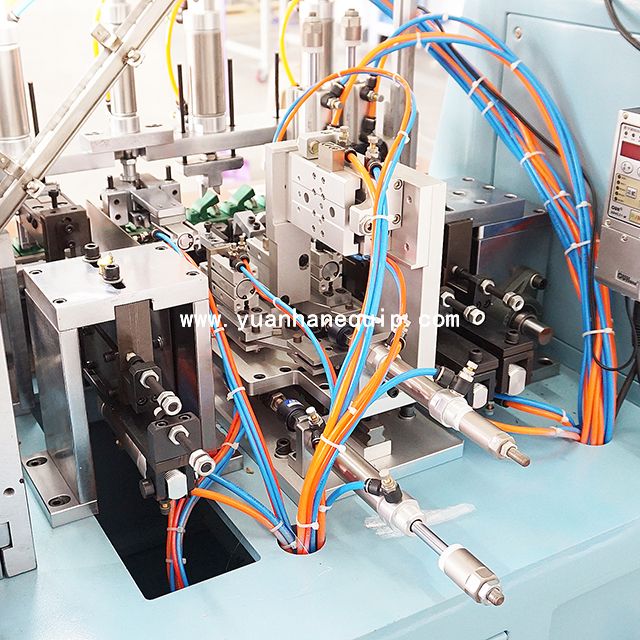

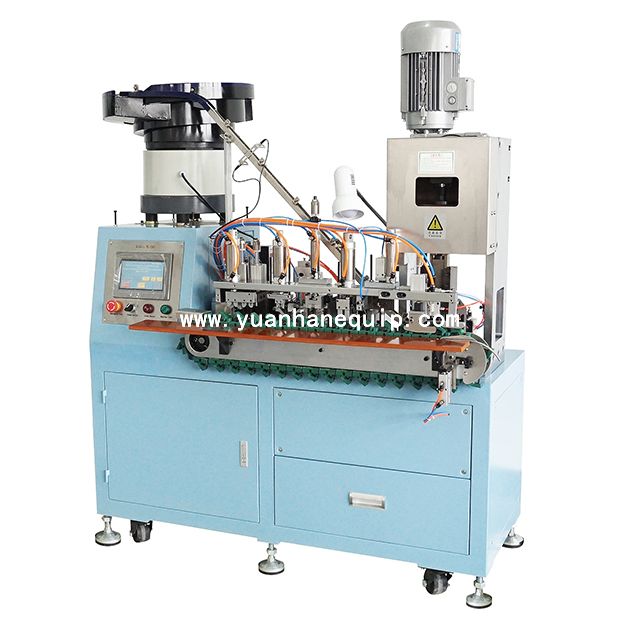

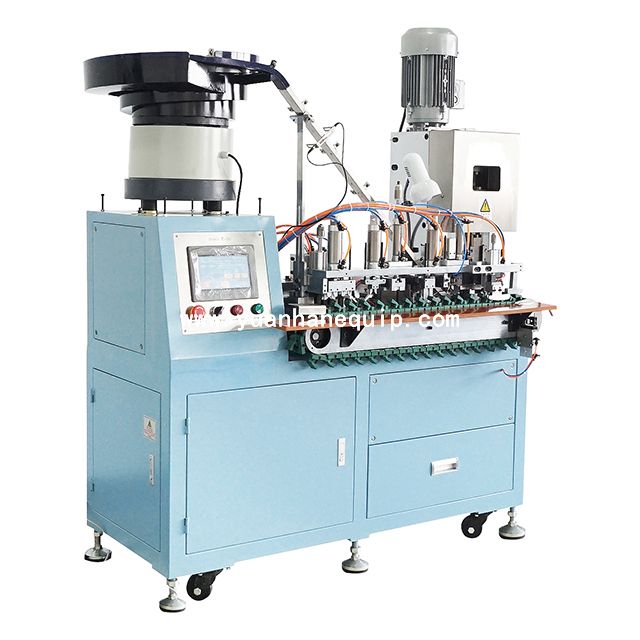

Automatic European Power Cord Plug Riveting Press MachineAutomatic European Power Cord Plug Riveting Press Machine

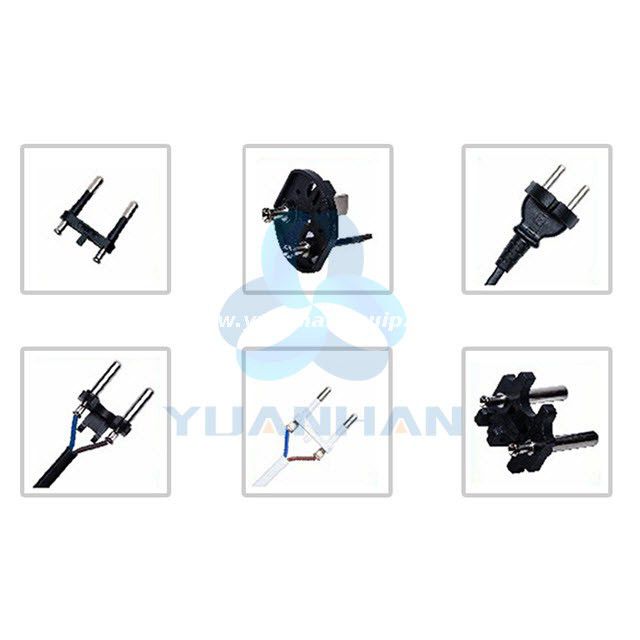

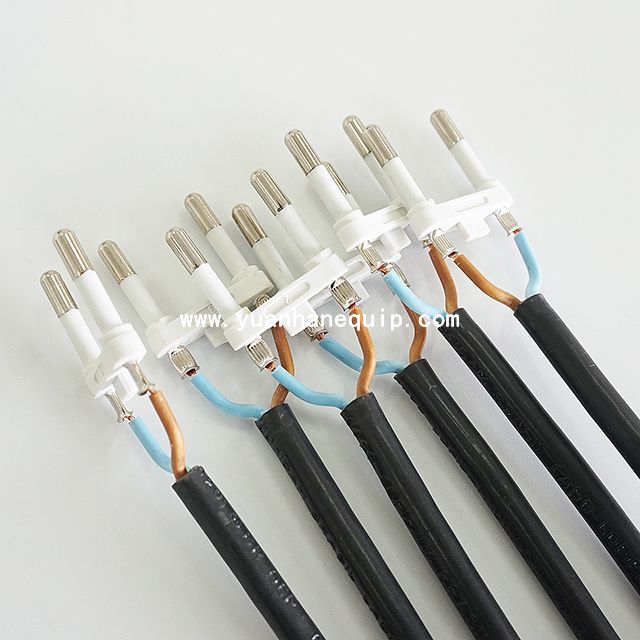

This is a semi-automatic european standard power cord plugs riveting press machine. It can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic vibrating plate feeding, and rivet pressing at one time.

  • YH-280-O
  • Yuanhan
Share to:
  • Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic vibrating plate feeding + rivet pressing.

  • Features man-machine interface debugging, the whole machine is controlled by PLC and inverter, variable frequency motor, and the performance is stable.

  • Simple, safe and efficient operation.

  • Applicable wires: H03VVH2-F, H05VVH2-F

Model YH-280-O
Capacity 1,800-2,200PCS/H
Crimping force 3T
Yield 99%
Operating air pressure 0.5-0.8MPa
Voltage AC220V/50HZ
Power 1.6KW
Machine weight 433KG
Machine size 1170mm*770mm*1550mm
