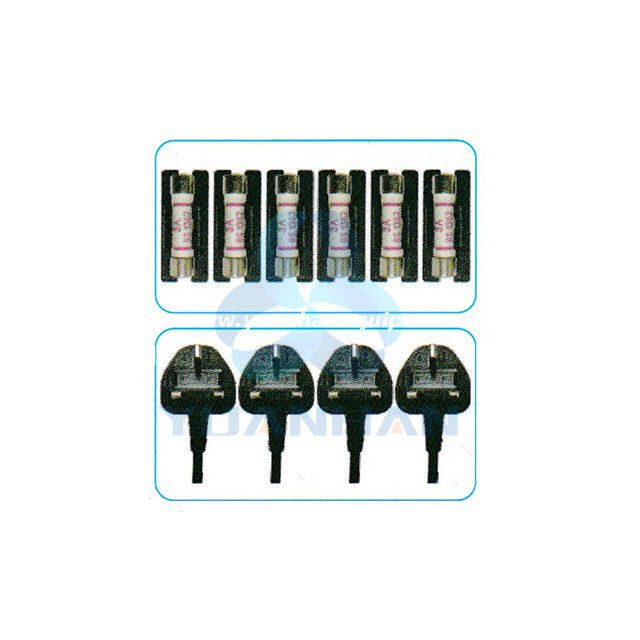

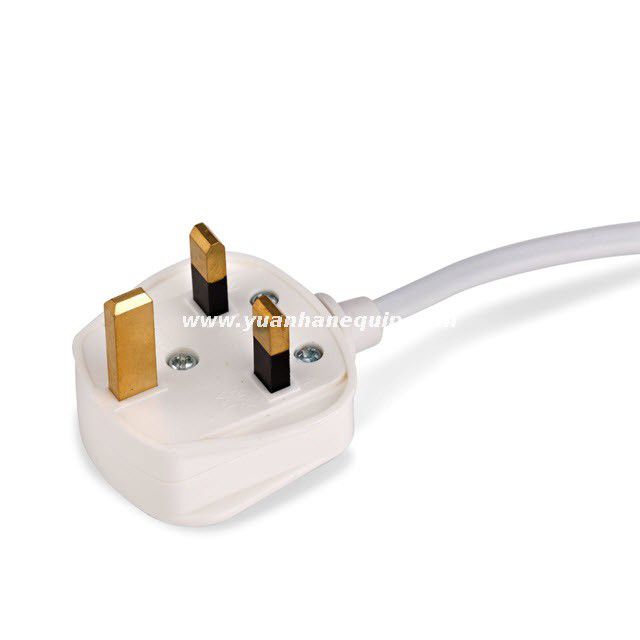

This is a semi-automatic british standard plug fuse and plug cover mounting machine. The machine feeds from the vibrating plate and completes the assembly automatically.
Model:
|
|
Brand:
|
|
Feeding by vibrating plate, automatic assembly.
Man-machine interface and PLC control, the operation is safe and fast.
Applicable wires: 2-core and 3 core cables
Model | YH-FB100 |
Capacity | 1,300-1,500PCS/H |
Yield | ≥99% |
Inner wire stripping length | 4-12mm |
Voltage | AC220V/50HZ |
Operating air pressure | 0.5-0.8Mpa |
Power | ≤1.0kw/h |
Machine weight | 310KG |
Machine size | 1,300mm*600mm*1,208mm |
