Kunshan Yuanhan Electronic Equipment Co., Ltd.

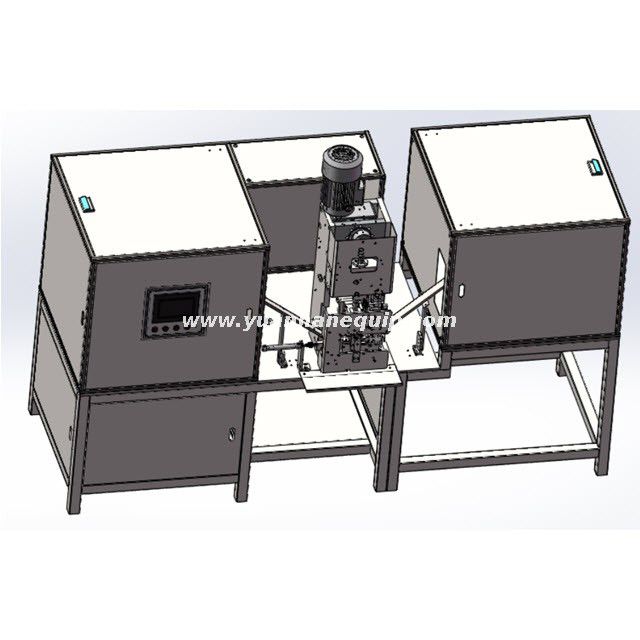

Automatic Type G Plug UK Plug Making Machine

This is a semi-automatic type G plug UK plug making machine. It is able to complete vibrating plate feeding, plug inserts crimping and pressure cover installing at one time.

Model:
  • YH-180B
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine can complete vibrating plate feeding, plug inserts crimping and pressure cover installing at one time.

  • Applicable wire: 2-core or 3-core cable

  • Man-machine interface debugging, the whole machine is controlled by PLC, frequency converter, and frequency conversion motor.

  • Stable performance, simple operation, safe and efficient.

ModelYH-180B
Capacity800-1,000pcs/hour
Force3T
Yield rate≥99.8%
VoltageAC220V/50HZ/380
Air pressure0.5-0.8MPa
Power≤1.6KW
Weight500KG
Machine size2,510mm*930mm*1,740mm



×
