Automatic French Power Cord Plug Inserts Crimping MachineAutomatic French Power Cord Plug Inserts Crimping Machine

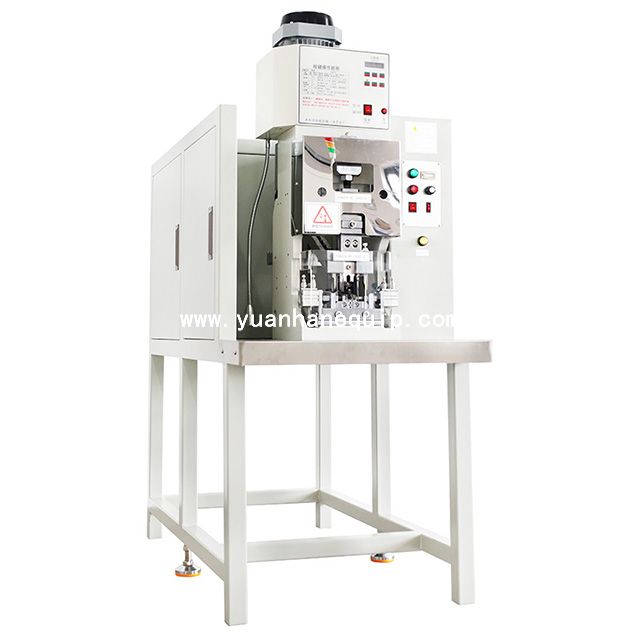

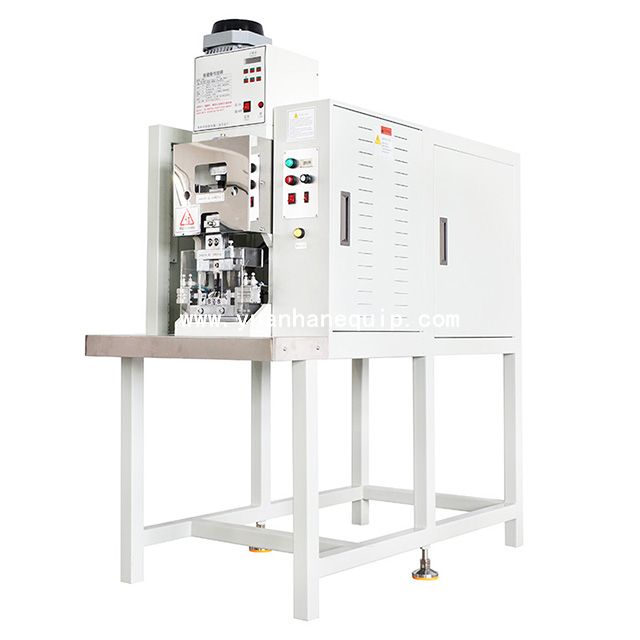

This is a semi-automatic french power cord plugs riveting press machine. It is controlled by PLC, frequency converter and variable frequency motor, which is safe and fast to operate.

Model:
  • YH-180-F
Brand:
  • Yuanhan
Share to:
Features
Specifications

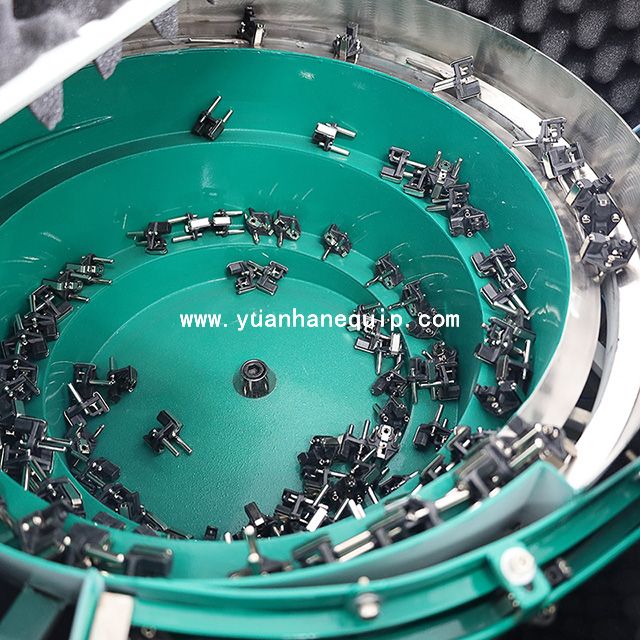

○ Automatic vibrating plate feeding, and riveting is completed at one time.

○ The whole machine is controlled by PLC, frequency converter and variable frequency motor.

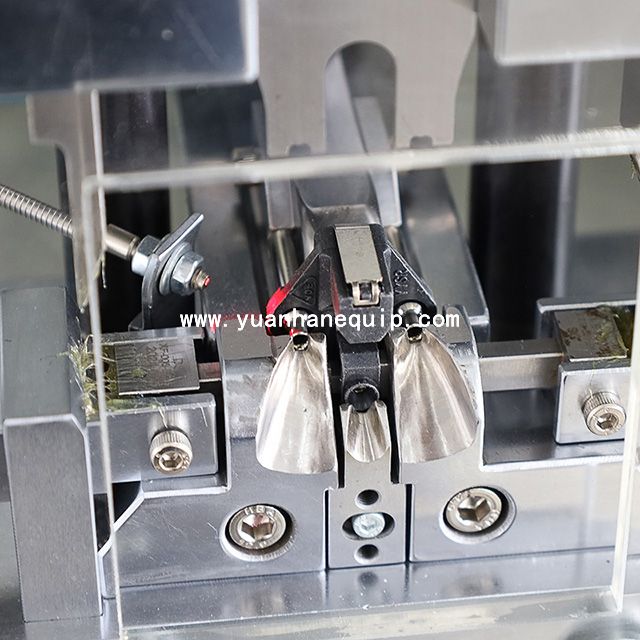

○ The riveting place is provided with a protective cover and a wire entry device, which is safe and fast to operate.

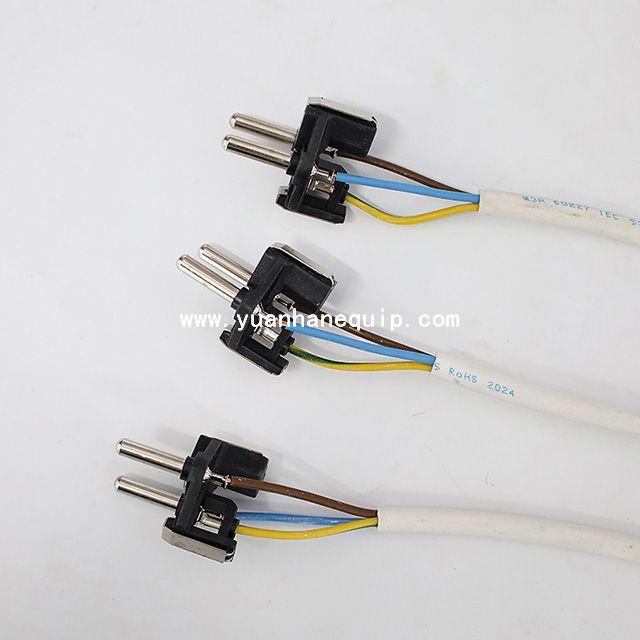

○ Applicable wire:RVV / 3C (under 1.5mm2),H03VV-F, H05VV-F (under 1.55 mm2)

ModelYH-180-F
Capacity800-1,000PCS/H
Riveting force3T
Yield99%
Operating air pressure0.5-0.8MPa
VoltageAC220V/50HZ
Operating air pressure0.5-0.8MPa
VoltageAC220V/50HZ
Power1.5kw/h
Machine weight280kg
Machine size1160mm*700mm*1650mm



×
