Heating Your Heat Shrink Tubing MachineHeating Your Heat Shrink Tubing Machine

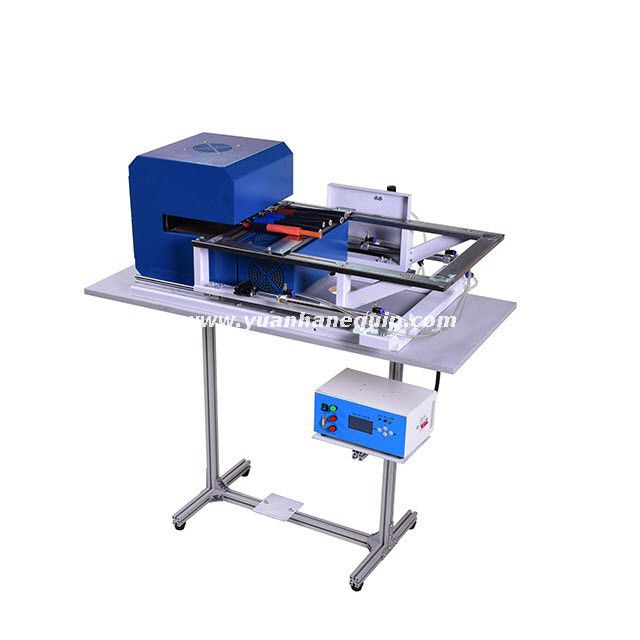

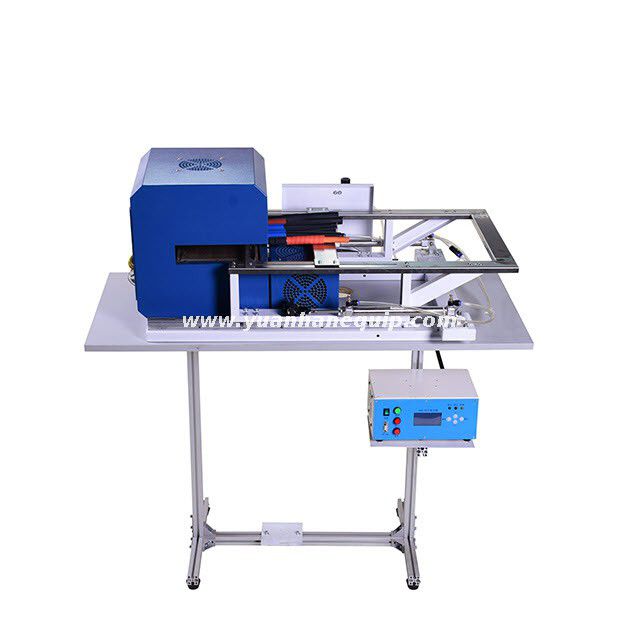

The intelligent temperature-adjusting double-sided heat-shrinkable tube heating machine is suitable for heating shrinkage of heat-shrinkable tube in wire harness processing enterprise. It can adjust the temperature according to the requirements of the production process, and the contraction time is short. It can shrink any length, and work continuously for 24 hours without interruption. There are omnidirectional reflective thermal materials, so that the heat shrinkable tube is heated evenly.

Model:
  • YH300E-Q
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This is a discontinued machine model. We've replaced it with YH-1826.

Equipment composition

○ Heating system + control system +automatic wiring harness support system

○ The working state is displayed by liquid crystal display

○ The working temperature, heating time and heating temperature are set at will.

○ The heating time, heating temperature and stopping time of the heat shrinkable pipe can be set freely and stored in memory according to the user's requirements.



The width of heating zone is adjustable

○ The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, save energy as much as possible and ensure the wire do not be hurt.



Automatic harness bracket

○ Wire harness bracket adopts pneumatic mode, automatically entering and heating zone, in and out, heating, changing products, time can be set freely.

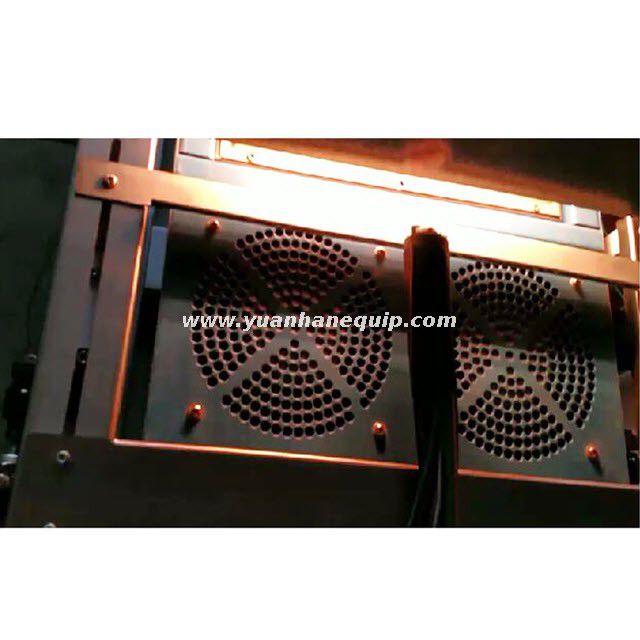

Heat insulation design of heating zone

○ The double shell design of heating area makes the inside and outside temperature separate, that is to save energy and protect the working environment.

Model
YH300E-Q
SizeOverall machine size (L×W×H)400×340×350mm
Control power (L×W×H)200×150×200mm
Heating area (L×W)300×200mm
Heating width200mm
Maximum wire beam heating length160mm
Maximum wire beam heating diameter25mm
Wiring harness supportMaterialStainless steel
Maximum heating quantity1-16 roots (according to wire diameter)
Transport modeAutomatic parallel movement
Heating pipeHeating pipe nameInfrared radiant tube
Heating pipe power1800W
Energy needsPower demand220V
Power1860W
Air source demand>1 KPa
SecuritySafety gradeGround wire


×
