Heat Shrinkable Tube Heating GunHeat Shrinkable Tube Heating Gun

The table type heat shrinkable tube heating air gun is suitable for heat shrinkable tube heating and contraction. The 360-degree rotation of the air outlet is suitable for a variety of working environments. Small size, light weight and easy to move. High thermal efficiency, uninterrupted 24 hours continuous work, durable and accurate temperature control.

Model:
  • YHZ300Z-25
Brand:
  • Yuanhan
Share to:
Features
Specifications

Outlet direction adjustment

  • The air outlet has 360 degree rotation in all directions, and is suitable for various working environments.



Double layer heat insulation

  • Design of sturdy double stainless steel shell,it is safe and reliable when used,can keep high temperature work for a long time. Digital regulation can be carried out to adjust the temperature according to the needs.Power output stability.



High heat exchange efficiency

  • Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.



Security

  • It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.



Apply to

  • Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.

  • Thermal shrinkage of PVC pipe.Heat shrinkable tube of car harness.

  • Thermal contraction of capacitors, batteries, wire terminals, heat shrinkable sleeves / membranes, etc.



ModelYHZ300Z-25
Size

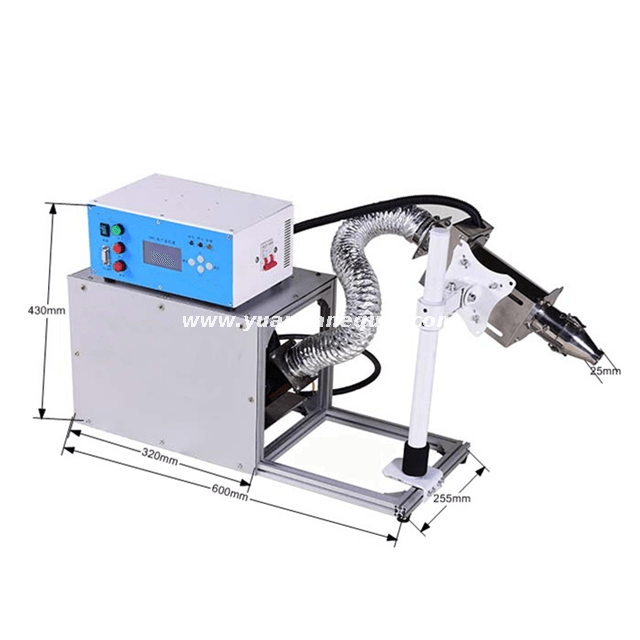

Overall machine sizeSee picture
The size of the air outlet50mm   25mm
Heat preservation layerMaterialDouble insulation
HeaterNameResistance heating
Heat energy3KW
Temperature control methodIntelligent temperature adjustment
Service life of heated wire100,000h
BlowerBlower50W
Maximum wind volume138M3/Hthe actual air volume is about 80M3/H
Static pressure218pa
TemperatureMaximum air flow outlet temperature rise>395℃
Maximum affordable temperature<430℃
Power supplyPower demand220V two-phase
Overall machine power3,050W
WeightOverall machine weight10KG


×
