Heat Shrinking Tube OvenHeat Shrinking Tube Oven

The heat shrinking tube oven is designed for mass production. It can realize multi-point heat shrinking on one cable, especially suitable for large diameter, thick-walled taped heat shrinkable sleeves, and super-long heat shrinkable sleeves. Precise heating, full quality control, zero burning, fully safe.

Model:
  • YH-50F
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This is a discontinued machine model. We've replaced it with YH-2630H

○ The heat shrinking tubing oven machine is suitable for mass production.

○ It can realize multi-point heat shrinking on one cable.

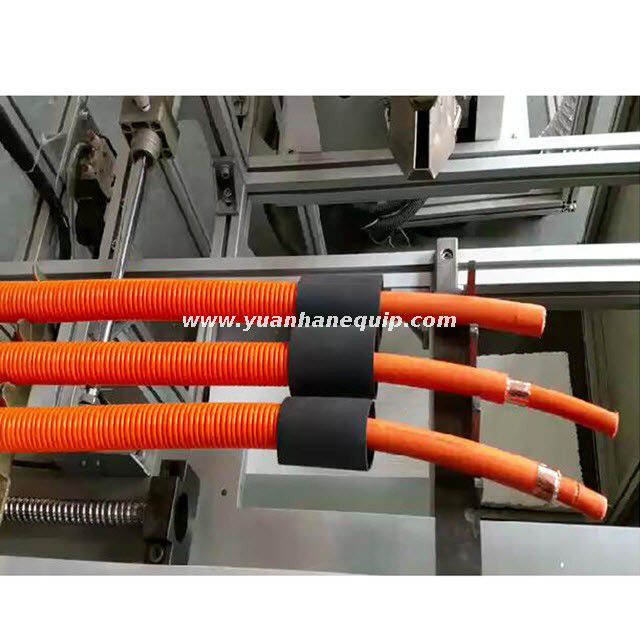

○ Suitable for processing large diameter, thick-walled taped heat shrinkable sleeves, and super-long heat shrinkable sleeves.

○ Precise heating, full quality control, zero burning, fully safe.

ModelYH-50F
SizeWhole machine size (L * W * H)1350×720×1300mm
Maximum wire harness diameter<50mm
Maximum heating length<500mm
Cooling zone200mm
HeaterMaterialStainless steel and aluminum alloy
Heat shrinkable speed0~100mm/s
Conveying motor power25W(Stepless speed regulation)
Heating modeHot air
Heating tube power2KW, 2 sets
Energy demand Power demand220V Two phase three line 50HZ
Air source demand3.5 KPa ~ 6KPa
Power4.5KW


×
