Heat Shrinking Tubing Oven Machine for Wire HarnessHeat Shrinking Tubing Oven Machine for Wire Harness

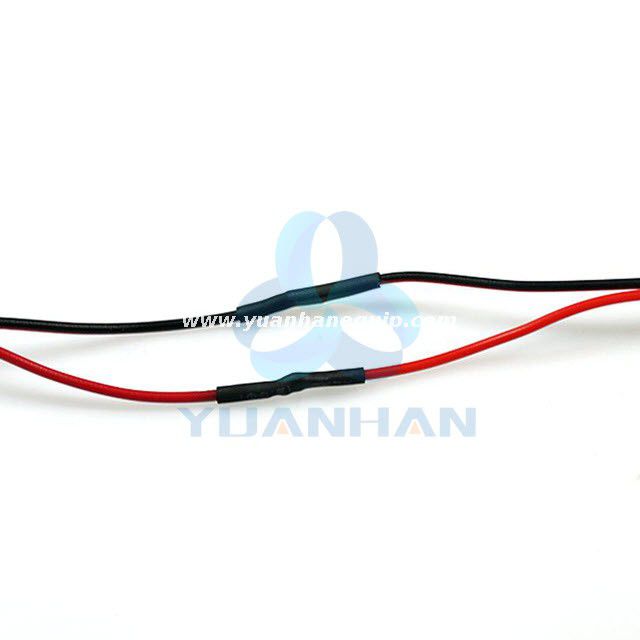

Heat Shrink Oven for wire harness is standalone equipment designed for shrinking heat shrink sleeves commonly used in the military, aerospace, and cable assembly houses.

  • YH-H200A
  • Yuanhan
Share to:
  • Heat Shrink Oven reduces the time of using a heat shrink gun by almost 80%, saving you both time and money on labor and energy usage.

  • Equipment composition: Transmission system + heating system + control system

  • Power Regulation Control Temperature: The heating power is controlled by a solid-state voltage regulator, and the potentiometer is steplessly adjusted to achieve the effect of temperature control.

  • Continuous operation can be carried out, greatly ensuring work efficiency.

  • Heat insulation design of heating zone: The shell of the heating area is designed with double layer heat insulation, which makes the inside and outside temperature separate, that is to save energy and protect the working environment.

  • Adjustable input and output height: The conveyor belt heating box is completely closed, and the input and output end of the heating box has a sliding door that can rise and fall, effectively preventing the heat source from leakage, protecting the working environment, energy conservation, and increasing the machine's ability to use one machine in many different jobs.

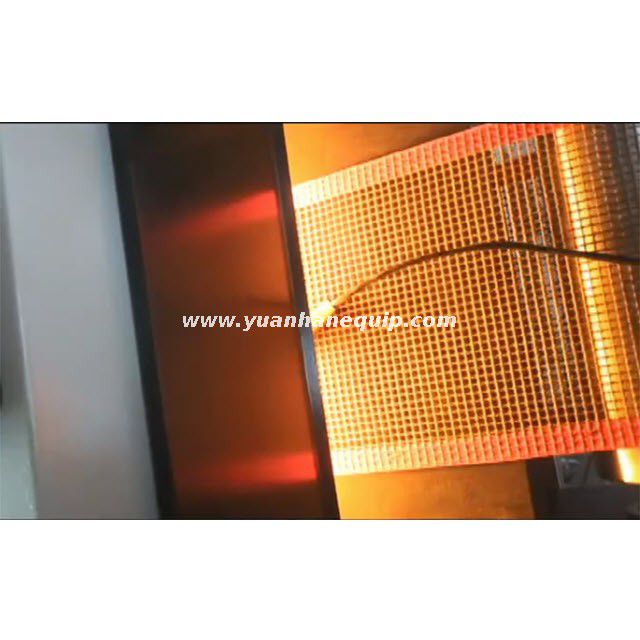

  • Adjustable infrared heating pipe height: The infrared heating tube can adjust the height quickly. Ensure repeatability of distance between light source and conveyor belt.

  • Adjustable heating tube power: The power of heating tube can be adjusted steplessly by potentiometer.

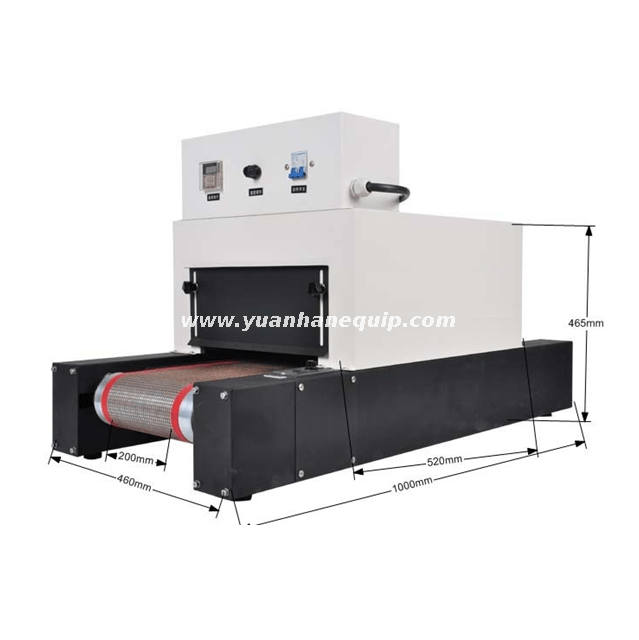

Overall machine size(L×W×H) 1000×460×465mm
Control power(L×W×H)200×150×200mm
Heating area(L×W)520×460mm
Belt width200mm
Maximum transmission width250mm
Maximum transmission height 100mm(Adjustable)
Conveyor belt  MaterialTeflon
The power of motor25W(Stepless speed regulation)
Heating pipe nameInfrared heating tube
Heating pipe power300W*6
Power Supply  220V
Efficiency 1860W
