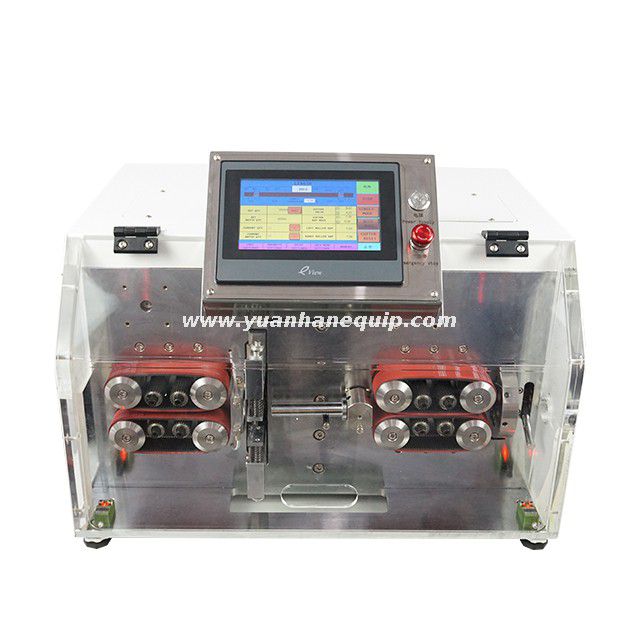

Cable Cutting and Outer Jacket Stripping MachineCable Cutting and Outer Jacket Stripping Machine

This fully automatic cable cutting and sheath stripping machine is able to peel outer skin of single core and multi-core sheathed cables. The applicable wire sizes range from 6-30 sq mm.

Model:
  • YH-8030
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: cutting and stripping

  • Applicable wire sizes: 6-30 square mm

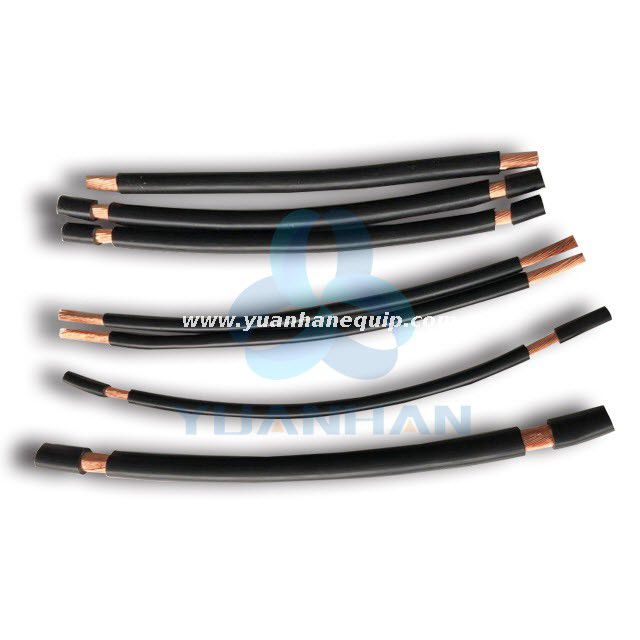

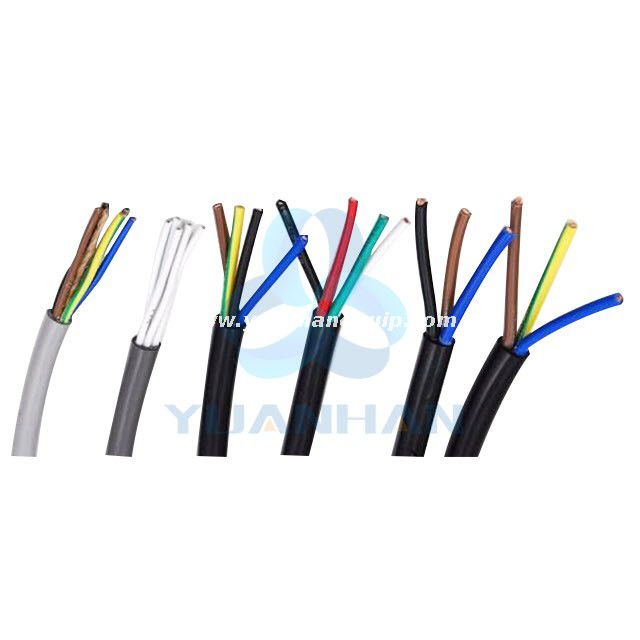

  • Strip outer sheath of single conductor cables or multi-conductor cables

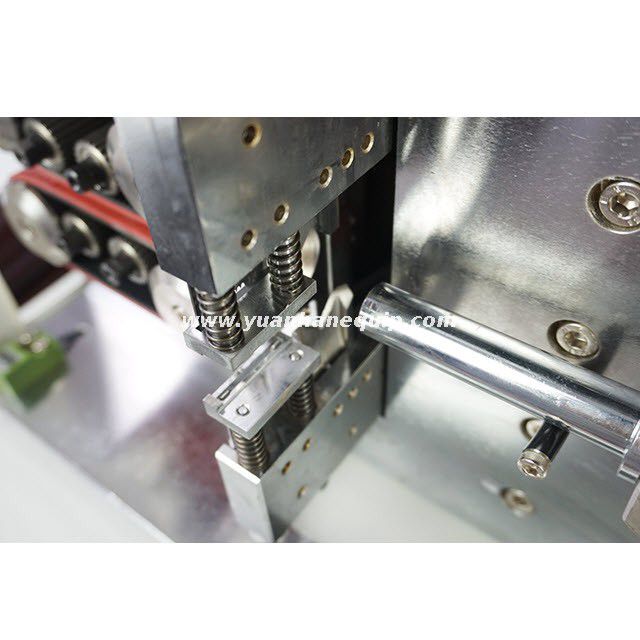

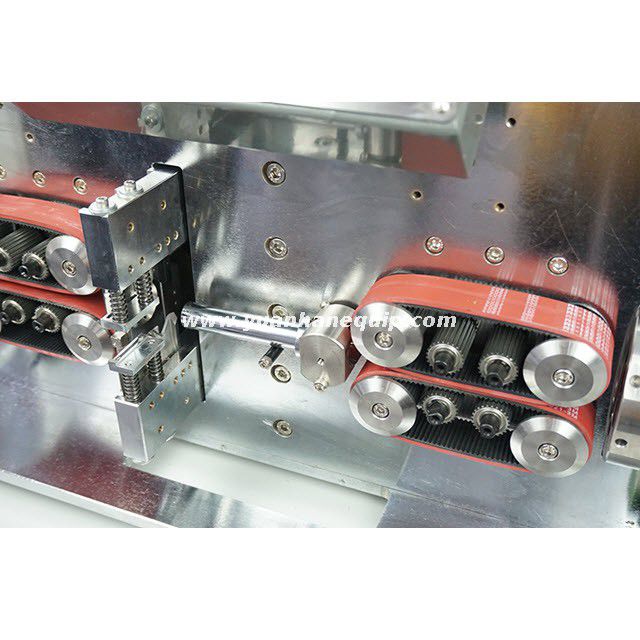

  • Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

  • Belt feeding wires, no embossing and scratches

  • Head stripping: 10-120mm

  • Tail stripping: 10-240mm

Model YH-8030
Display 7 inch true color touch screen
Function Cutting and stripping
Head peeling MAX 120mm
Tail peeling MAX 240mm
Wire type Sheathed cables, PVC cables, etc.
Stripping range 6-30 sq mm
Cutting length 1mm-99999.9mm
Cutting tolerance within 0.002*L (L=cutting length)
Max diameter of guiding pipe Φ16
Tool material High quality imported high speed steel
Capacity 2300pcs/h
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.



×
