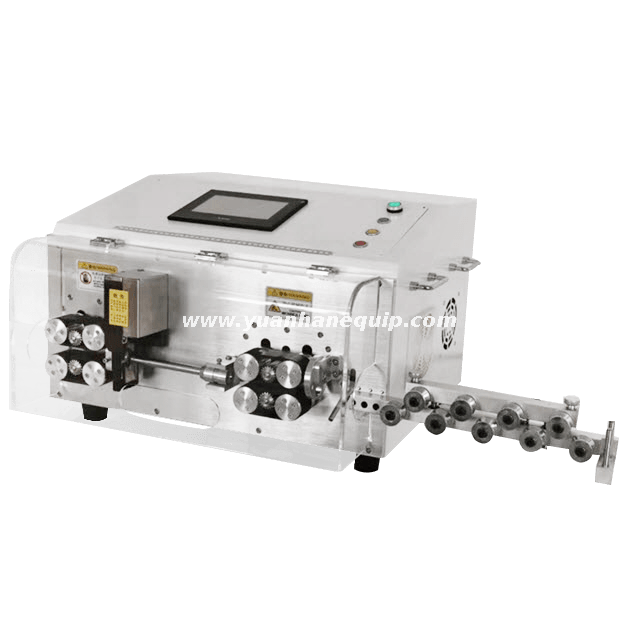

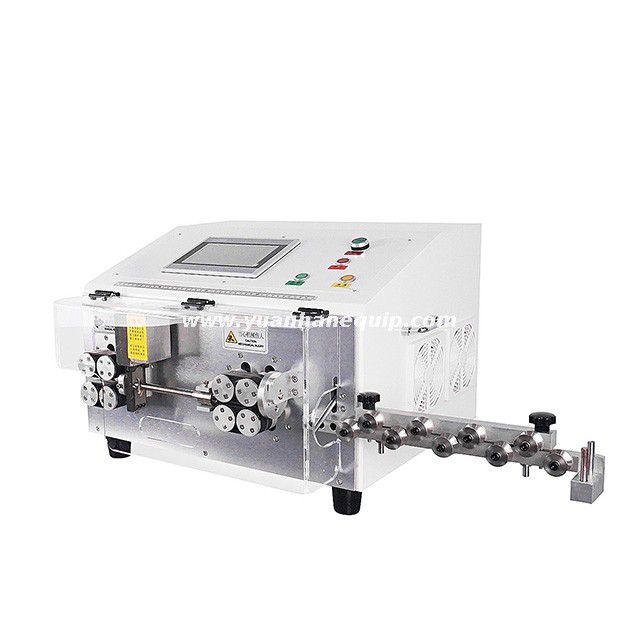

Fully Automatic Wire and Cable Cutting and Stripping MachineFully Automatic Wire and Cable Cutting and Stripping Machine

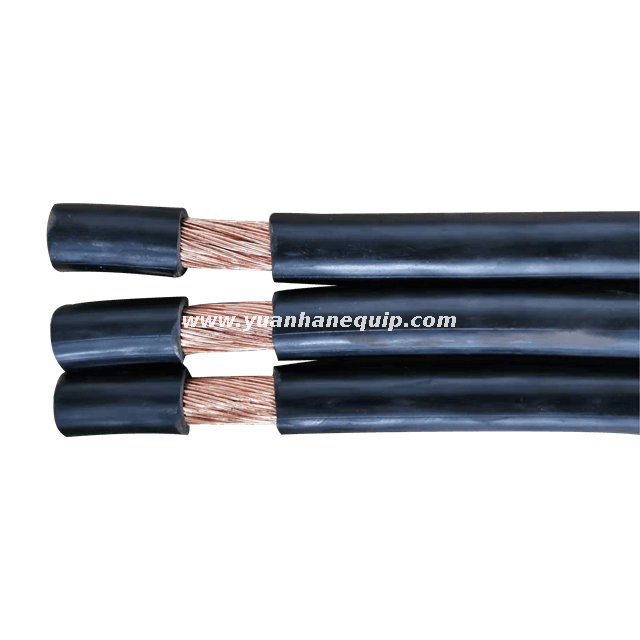

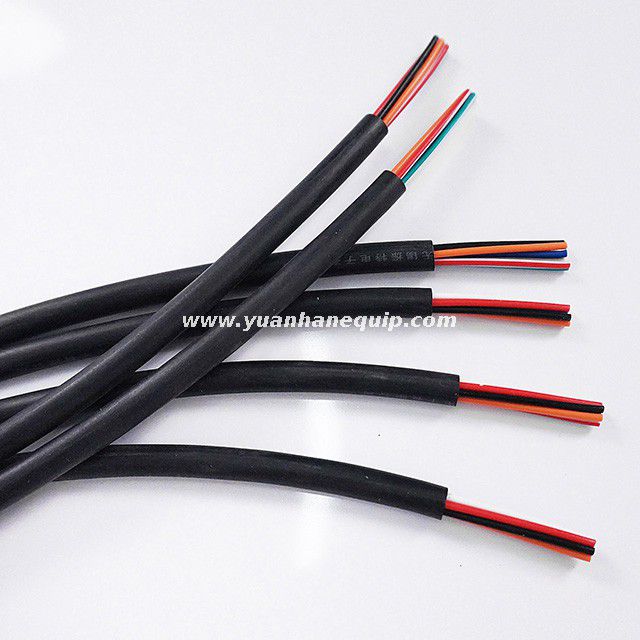

This fully automatic wire and cable cutting and stripping machine is suitable for processing of multi-strand copper wires, coaxial cables, and sheathed cables up to 35 sq mm.

Model:
  • YH-B35
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine adopts 8-wheel drive, bilateral pressing wheels, strong power and high precision. The belt feeding system can ensure that the wire surface is not damaged.

  • The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without the need to manually adjust the pressure of the wheels. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program.

  • The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be divided into three layers, or when the stripping length is long, the maximum number of points Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different wires can be stored in different program numbers.

  • It can be equipped with branching jigs, cutting jigs, and ink-jet printers.

ModelYH-B35
Display modePLC 7-inch touch screen
Memory functionup to 100 groups of programs can be stored
Applicable wire typesmulti-strand copper wire, coaxial cable, sheathed cable, etc.
Drive mode8-wheel drive, synchronous belt double pressure wire feeding
Applicable wire sizeBVR 1.5-35mm2
Blade materialimported high-speed steel
Maximum catheter diameterø16mm
Working voltage220V/50Hz
Cutting length0-100 meters
Rated power650W
Stripping length

wire head: 0-250mm, wire tail: 0-120mm

(When the wire head is longer than 500mm, it can be equipped with a cutting jig, and the center can be cut infinitely.)

Dimensions560*520*450mm
Minimum length of glue left50mm
Weightabout 70kg
Cutting tolerance±(0.002mm*L) (L = cutting length)
Stripping speed1,500-2,500 per hour




×
