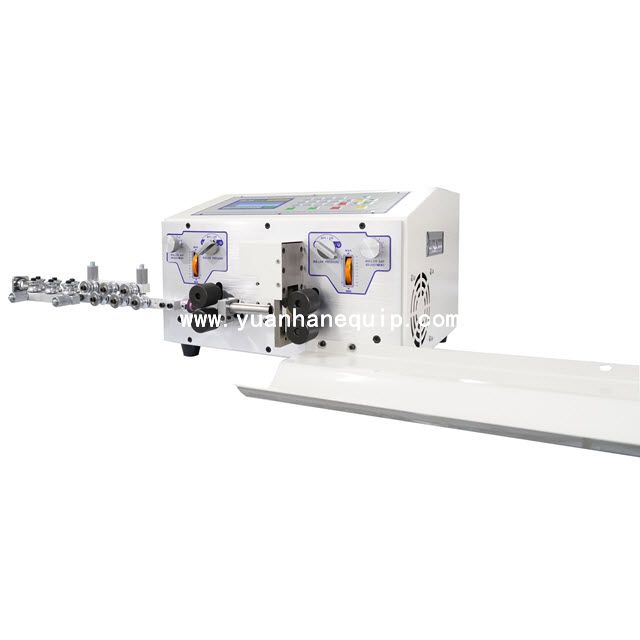

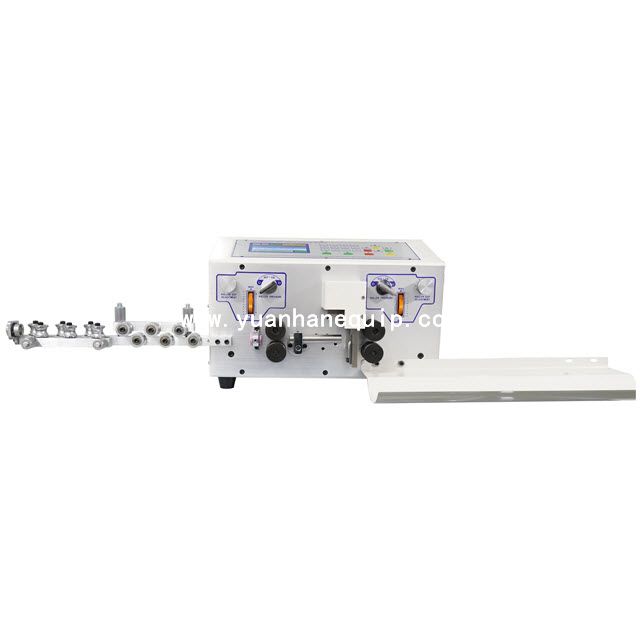

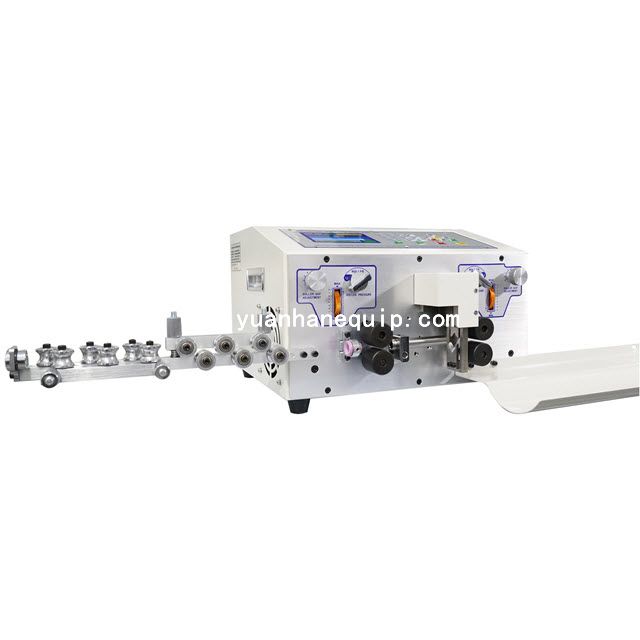

4-wheel Drive Cable Cutting and Stripping Machine4-wheel Drive Cable Cutting and Stripping Machine

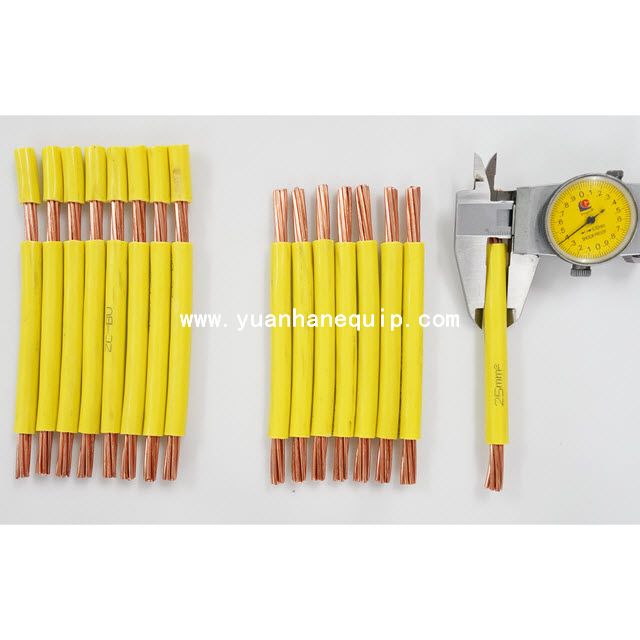

This 4-wheel drive cable stripping and cutting machine is suitable for peeling PVC cables, Teflon cables, silicone wires, fiberglass wires, and much more. It is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys. Cutting length: 1-60,000 mm, stripping length: 0-50 mm. Available wire sizes: 0.3-25 sq mm.

Model:
  • YH-BMAX
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Suitable for stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.

  • LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision

  • Wire length can be set freely according to customer request

  • Cutting Length: 1-60,000 mm

  • Stripping length: 0-50 mm

  • Available wire sizes: 0.3-25 sq mm

  • Drive mode: 4-wheel drive

Model YH-BMAX
Available wire size 0.3-25mm²
Stripping length 0-50mm
Maximum diameter of catheter ¢13mm
Middle peeling and cutting 13 sections
Cutting tolerance within (0.002xL) mm
Stripping speed 3,000-4,000 pcs/hour
Noise less than 70dB(A)
Power supply AC220/110V 50HZ/60HZ
Motor power rated 500W
Display mode Chinese and English LCD display
Cutting length 1mm-60,000mm
Applicable wire PVC, Teflon, glass wire, silicone wire
Blade material imported high-speed steel
Drive mode 4-wheel drive
Machine size 450*390*300mm
Machine packaging size 540*530*410mm
Net weight 34 kg
Gross weight 37 kg
Optional accessories wire tray, rubber roller, wire straighter






×
