Automatic Multi-core Flat Cable Slitting and Stripping MachineAutomatic Multi-core Flat Cable Slitting and Stripping Machine

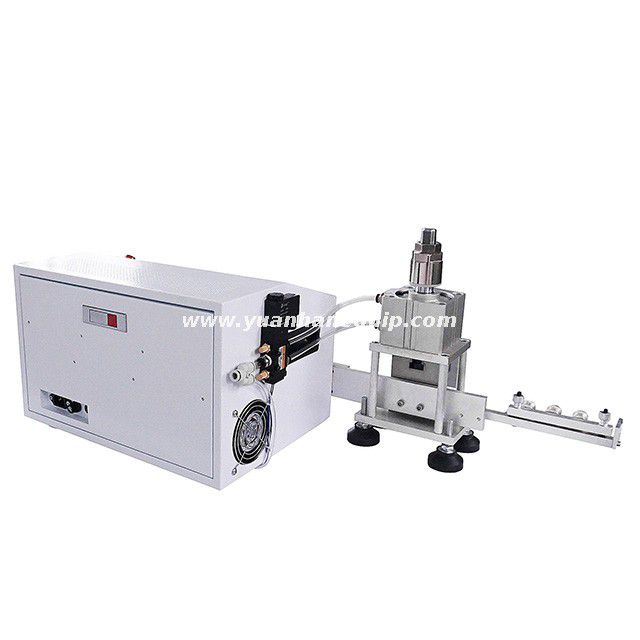

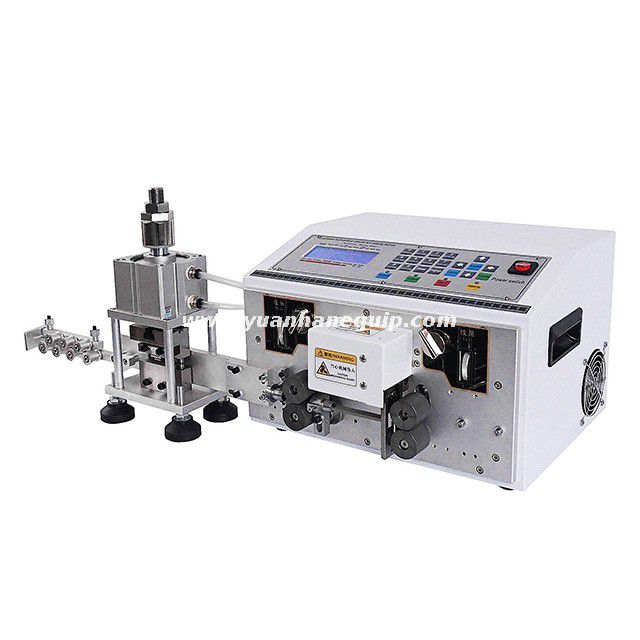

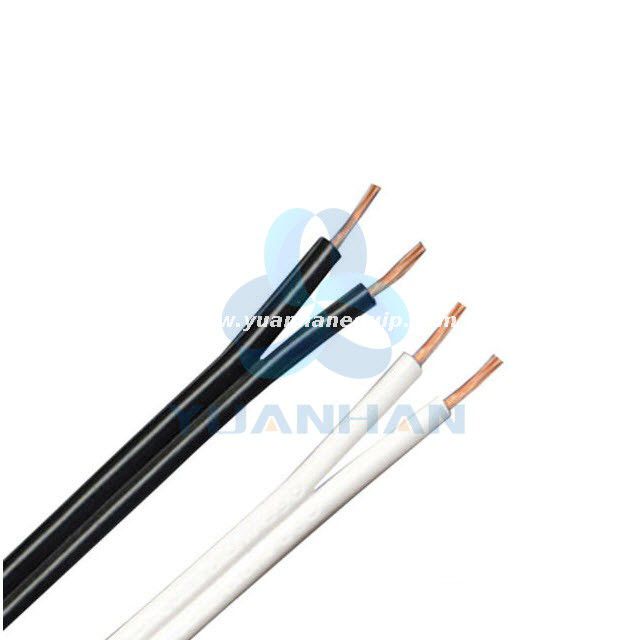

This is a fully automatic flat cable cutting slitting and stripping machine. It is able to process of twin flat cables/parallel flat cables and multi-pin flat cables.

Model:
  • YH-668F
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: flat cable cutting, slitting and insulation stripping

  • Automatic cable feeding, output setting, timing start

  • Cutting length: 1-99,999.9mm

  • Slitting length: 0.1-150mm

  • Stripping length: head stripping: 25mm, tail stripping: 80mm

ModelYH-668F
Cutting length1-99,999.9mm
Stripping lengthhead stripping: 25mm, tail stripping: 80mm
Middle stripping15 sections
Slitting length0.1-150mm
Core wire cutting0.1-10mm2
Cutting tolerance0.002*L mm
Catheter size3*20mm
Blade materialimported high-speed steel
Drive mode4-wheel drive
Cable pressure adjustmentYes
Pulse equivalentno error within 5mm
Drive motorstepper motor 0.1mm
Number of slitting2-12 pins
Effective efficiency3,000-8,000pcs/h
Dimensions400*300*330mm
Weight40KG



×
