Kunshan Yuanhan Electronic Equipment Co., Ltd.

Electric Discrete Wire & Multi-conductor Cable Stripping MachineElectric Discrete Wire & Multi-conductor Cable Stripping Machine

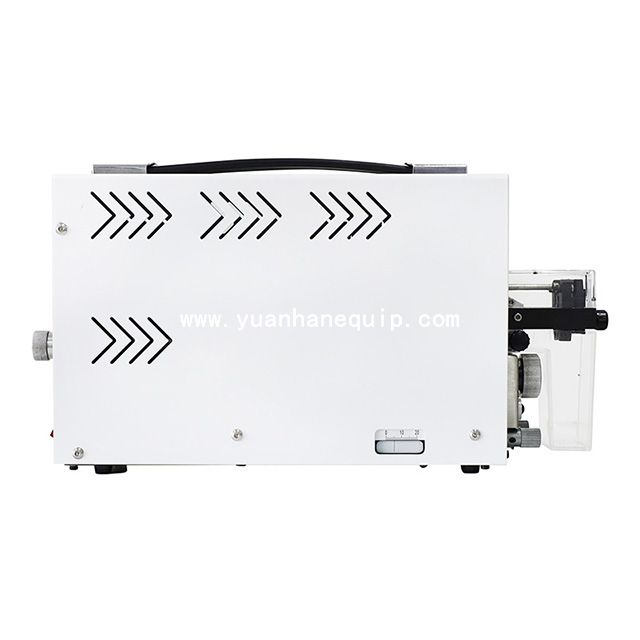

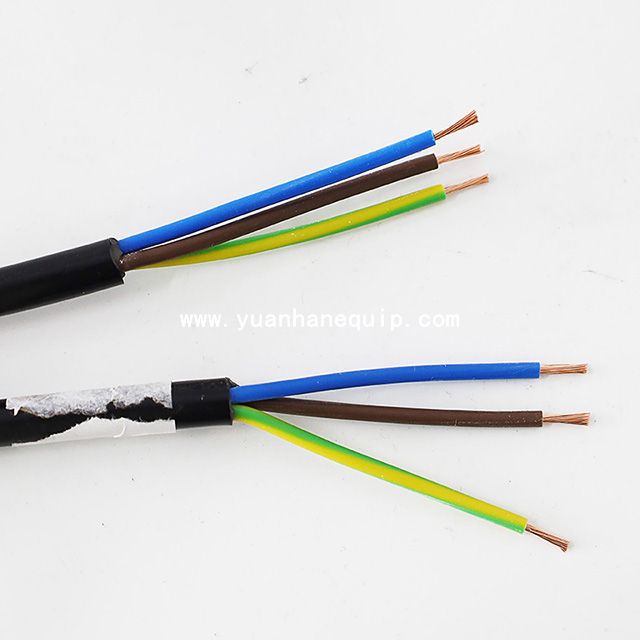

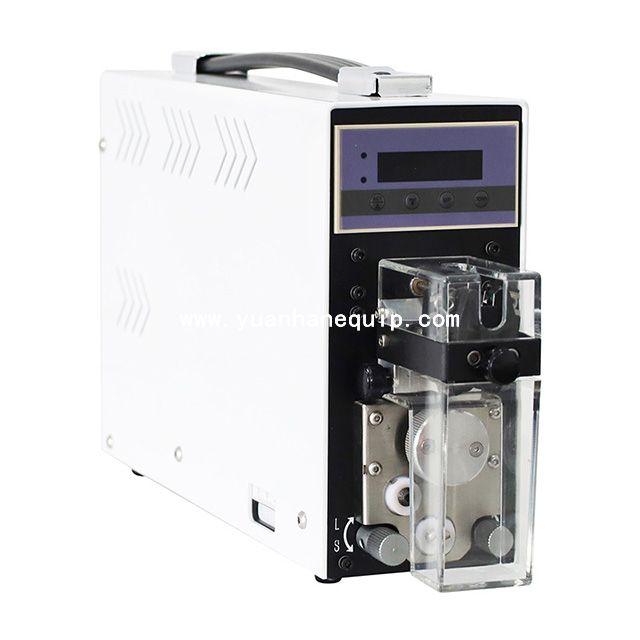

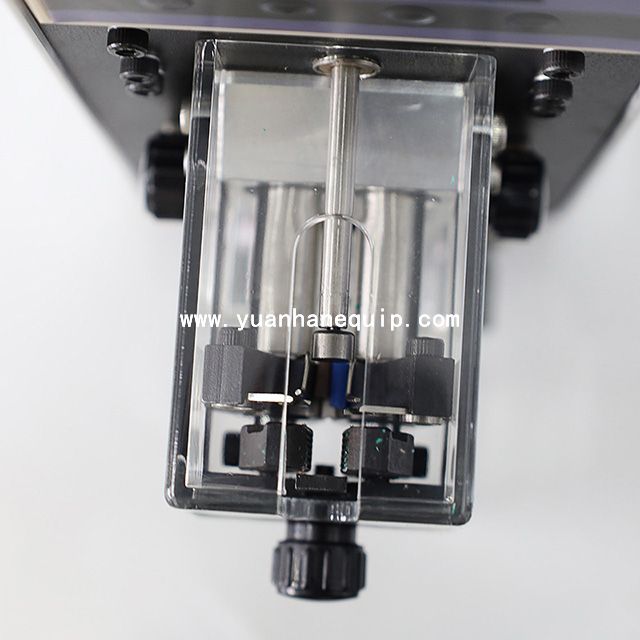

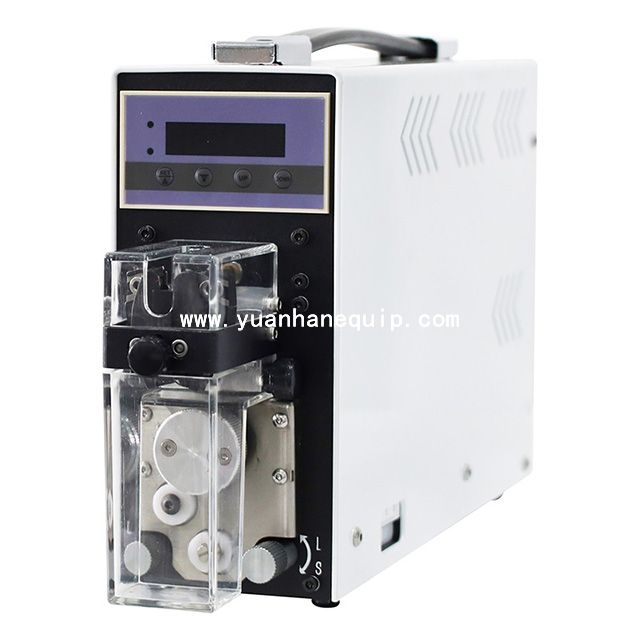

The YH-2015D electric wire stripper can process discrete wires, solid wires, single-stranded wires, single-core cables, multi-core cables, rubber wires and PUR PVC Teflon wires.

Model:
  • YH-2015D
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Suitable for stripping discrete wires and small multi-conductor cables

  • Extremely short cycle times

  • No need to change blade

  • Being able to strip very short cables

Model YH-2015D
Available wire size 0.03- 4mm²
Max. cable OD 4.2mm
Full strip 0.5mm
Partial strip 6mm
Setting accuracy 0.01mm (0.001")
Max. stripping length 20mm
Processing time 0.5s
Net weight 4.5kg
Dimension (Length * Width * Height) 380 x 85 x 188 mm
×
