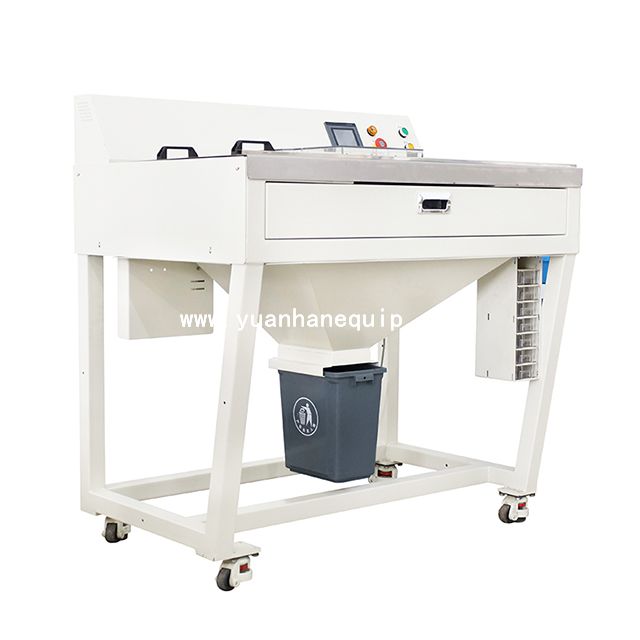

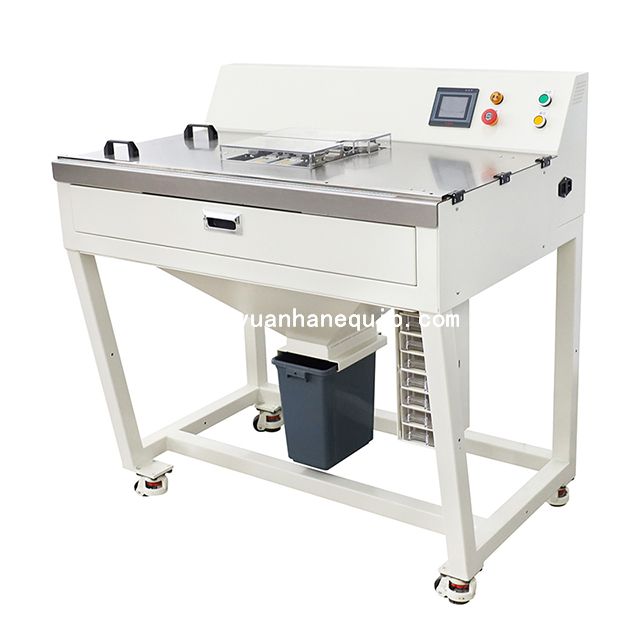

Automatic Cable Intermediate Partial Stripping MachineAutomatic Cable Intermediate Partial Stripping Machine

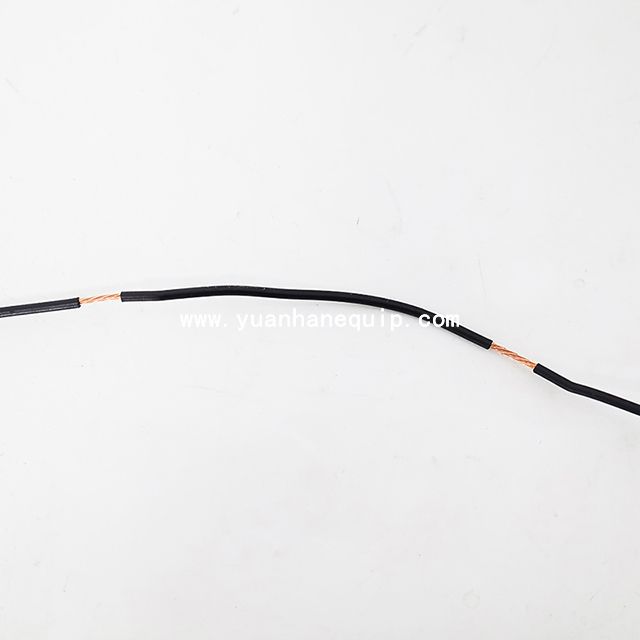

YH-P15 wire intermediate stripping machine is a professional equipment in the process of wire harness crimping. It can realize the middle stripping function of various cables.

Model:
  • YH-P15
Brand:
  • Yuanhan
Share to:
Features
Specifications

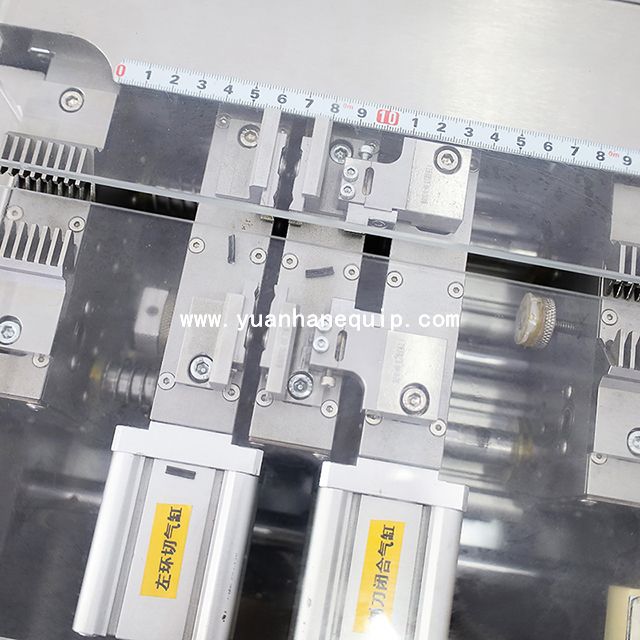

○ The wire middle peeling machine adopts a fully pneumatic mechanism to achieve efficient partial stripping, and uses an imported PLC to achieve precise control.

○ Wire range: 0.5-4.0 mm2 (can be customized)

○ Partial Stripping Length: 20mm (can be customized)

Model YH-P15
Wire range 0.5-4.0mm²
 (can be customized)
Partial stripping length 20mm (can be customized)
Distance between stripping to wire end more than 100mm (can be customized)
Cycle time 3-4 seconds
Voltage, frequency 220v-250v, 50Hz
Power 200W
Voltage fluctuation ±10%
Air pressure range 0.5-0.8Mpa
Weight 75kg
Dimensions W2000xD500xH900mm





×
