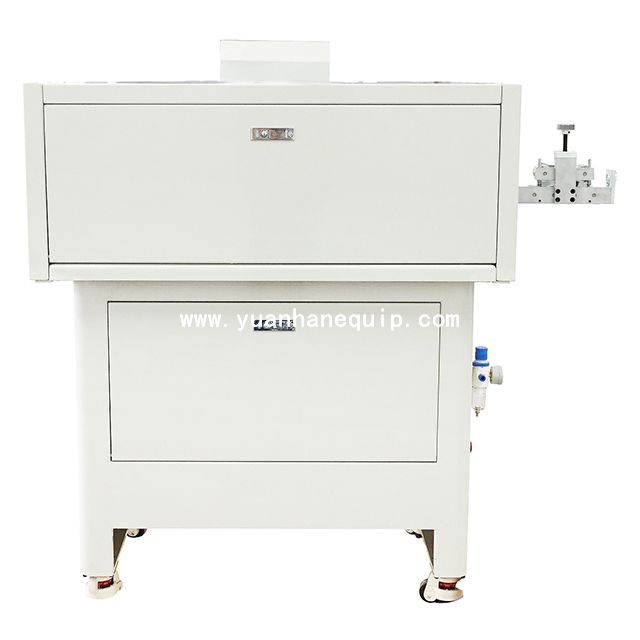

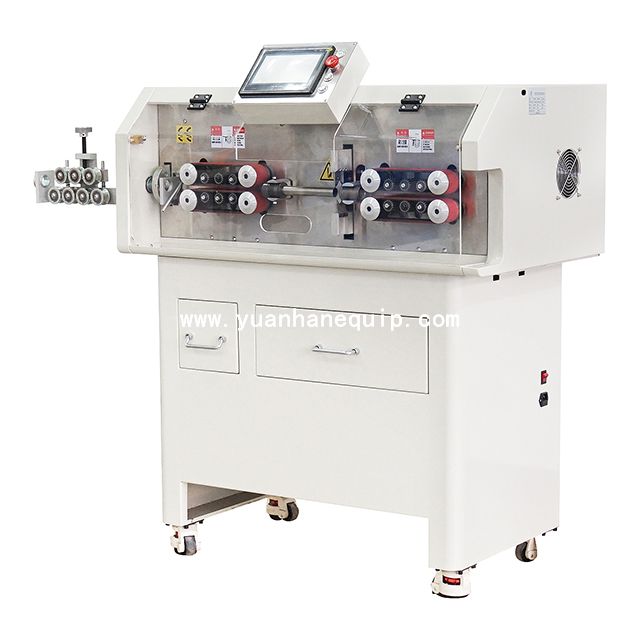

150mm2 Round Cable Cutting and Stripping Machine

150mm2 Round Cable Cutting and Stripping Machine

The fully automatic big cable cutting and stripping machine is suitable for processing PVC cables, Teflon cables, silicone wires, fiberglass wires, etc. Available wire sizes: up to 150mm2.

Model:	YH-150MAX3
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

This machine is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys.

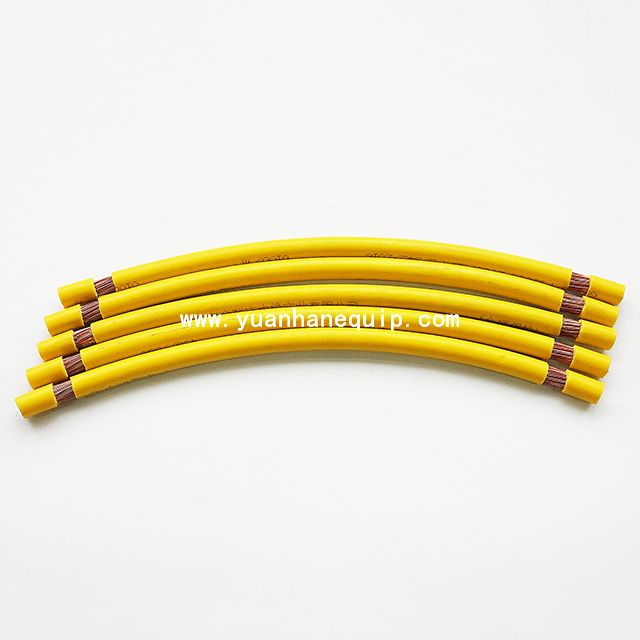

Suitable for cutting and stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.
LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision
Wire length can be set freely according to customer request
Max wire size: 150mm²
Drive mode: 8-wheel drive

Model	YH-150MAX3
Power	2300W
Power supply	220V/110V 50/60HZ
Display mode	7-inch touch screen Chinese and English interface
Outer diameter of round cable	5-23 mm
Maximum cross-area	150mm²
Air pressure	0.8Mpa
Maximum diameter of catheter	φ25
Stripping accuracy	±0.2mm
Cutting length	up to 400m

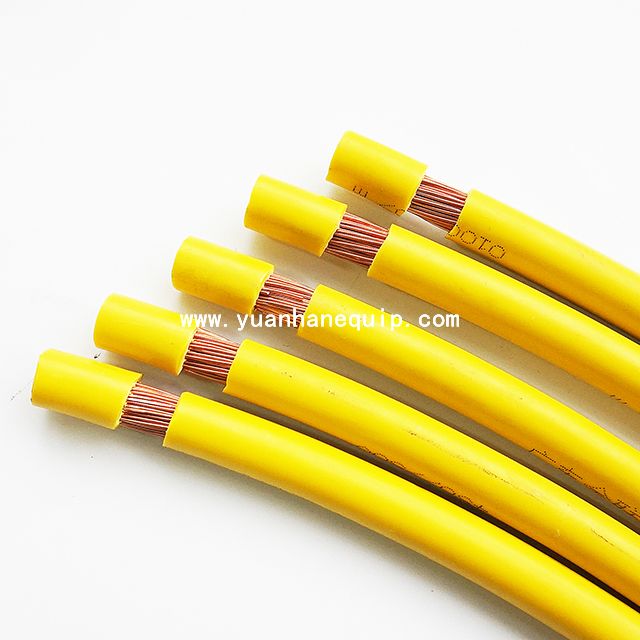

Stripping length of round cable	head stripping: 1-800mm, tail stripping: 1-150mm
150mm² stripping length	head stripping: 1-100mm, tail stripping: 1-100mm

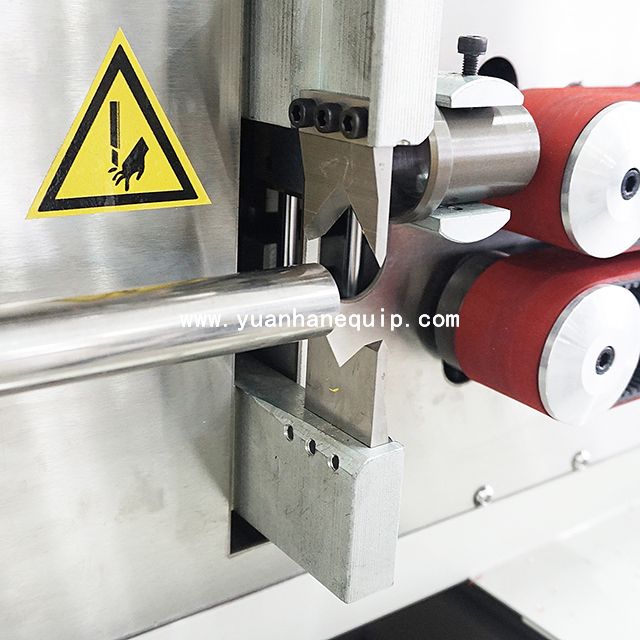

Blade material	imported high-speed steel
Stripping speed	900 pieces/hour (Length=1000mm)
Drive mode	8-wheel drive, motor ball screw drive
Dimensions	1060mm×640mm×1240mm length x width x height
Weight	230KG
