Cable Cutting & Stripping Machine with Wire StackerCable Cutting & Stripping Machine with Wire Stacker

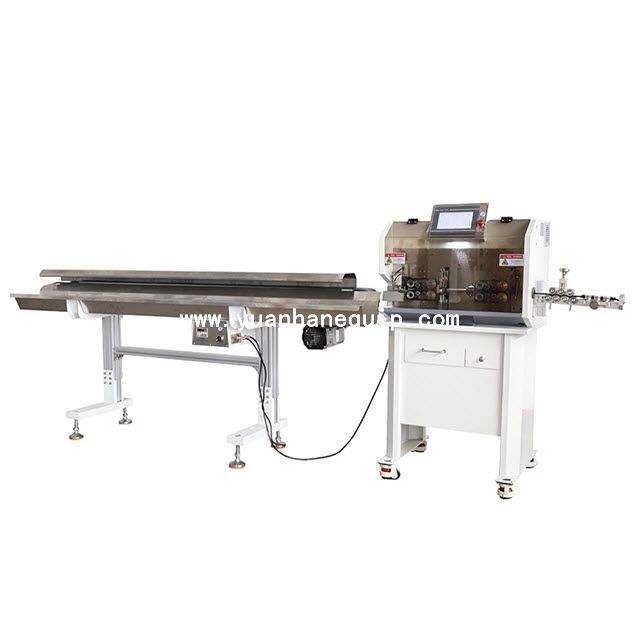

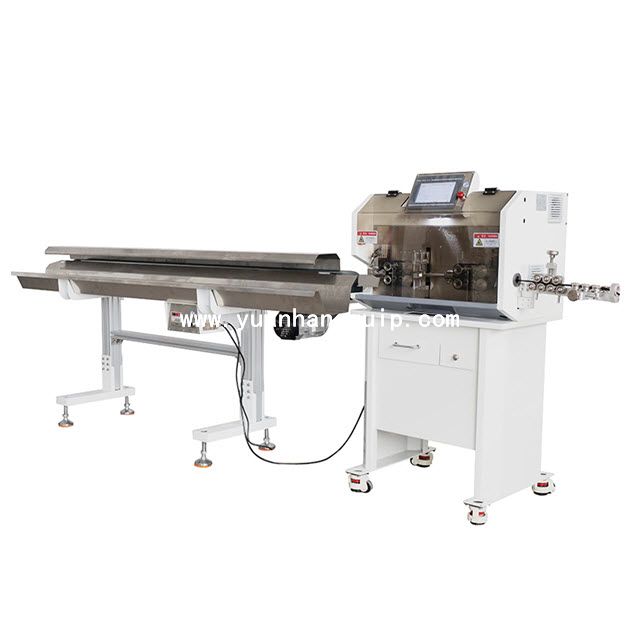

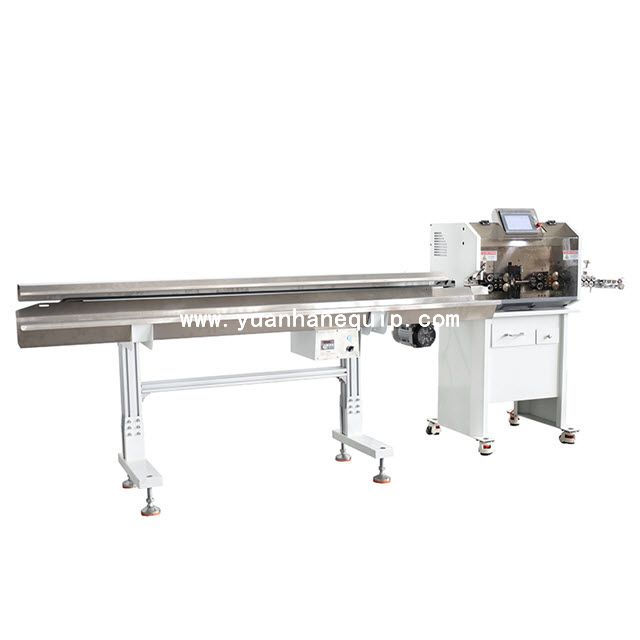

This is a fully automatic wire cutting and stripping machine with a cylinder manipulator and a 2m wire take-up device. It is able to strip outer skin and inner core skin of multi-core jacket cables simultaneously. The applicable wire sizes range from 4-30 sq mm.

Model:
  • YH-8030SX
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: wire cutting and stripping + cylinder manipulator + 2M wire take-up device

○ Applicable wire sizes: 4-30 square mm

○ Strip outer skin and inner core skin of multi-conductor cables simultaneously

○ Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

○ Belt feeding wires, no embossing and scratches

Model YH-8030SX
Display 7 inch true color touch screen
Function Cutting and stripping + cylinder manipulator + 2M wire take-up device
Head stripping 1- 190mm
Tail stripping 1- 120mm
Wire type Sheathed cables, PVC cables, etc.
Stripping range 4-30mm2
Cutting length 1mm-99999.9mm
Cutting tolerance within 0.002*L (L=cutting length)
Max catheter diameter Φ16
Tool material High quality imported high speed steel
Capacity 2300pcs/h(depending on the length and size of the cable)
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.





×
