0.1~4.5mm² Wire Cutting and Stripping Machine0.1~4.5mm² Wire Cutting and Stripping Machine

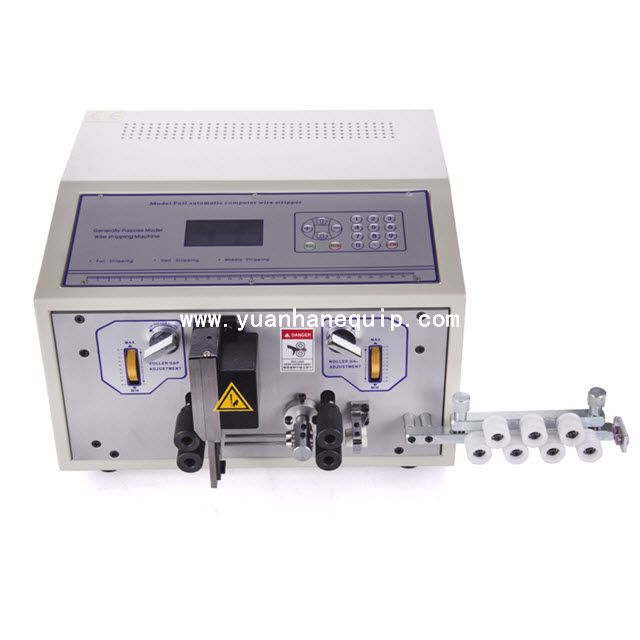

This small wire cutting and stripping machine is suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more. Processing wire range: single core: 0.1-4.5 sq mm , double wire: 0.1-2.5 sq mm.

Model:
  • YH-BSDB2
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more

○ Processing wire range: single core: 0.1-4.5mm², double wire: 0.1-2.5mm²

○ LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision

○ Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys

○ The cutting length can be set according to request

○ One-time cutting and stripping, saving labor and time and increasing productivity

Model YH-BSDB2
Applicable wire size single wire: 0.1-4.5mm²; double wire: 0.1-2.5mm²
Stripping length wire head 0-50, wire tail 0-30mm
Maximum diameter of wire conduit ¢6mm
Middle stripping and cutting 11 sections
Cutting tolerance within (0.002xL) mm
Stripping speed 4,000-10,000 pcs/hour
Noise less than 70dB(A)
Power supply AC220/110V 50HZ/60HZ
Motor power rated 200W
Display mode Chinese and English LCD display
Cutting length 1mm-9,999mm
Suitable wires PVC cable, Teflon cable, glass wire, etc.
Blade material hard tungsten steel
Drive mode 4-wheel drive
Machine size 390*350*255mm
Machine packaging size 537*507*400mm
Machine net weight 30 kg
Machine gross weight 31 kg
Optional accessories wire tray, rubber roller, wire straighter





×
