Kunshan Yuanhan Electronic Equipment Co., Ltd.

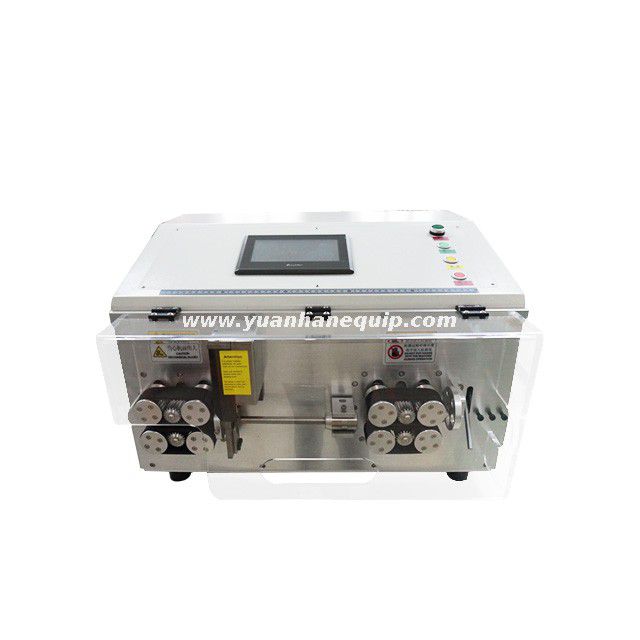

This coated aircraft cable stripping machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of military, medical, communications, power cables, sheathed wires, soft and hard wires.
This machine adopts 12-wheel drive, featuring strong power and high precision. The belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of military, medical, communications, power cables, sheathed wires, soft and hard wires.
The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without manual adjustment of the wheel pressure. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program.
The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be divided into three layers, or the longest stripping length Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different wires can be stored in different program numbers.
It can be equipped with branching jigs, cutting jigs, and inkjet printers.
|Display mode||7-inch colorful PLC touch screen|
|Memory function||up to 100 groups of programs can be stored|
|Applicable wire diameter||multi-strand copper wire, coaxial cable, sheathed wire, etc.|
|Drive mode||12-wheel drive, synchronous belt wire feeding|
|Applicable core area||BVR2.5.0-70mm2 (BV35 mm2, sheath wire outer diameter 18mm)|
|Blade material||imported high-speed steel|
|Large catheter diameter||ø20mm|
|Cutting length range||0-100 meters|
|Stripping length at both ends||0-300mm for wire head, 0-150mm for wire tail|
|Minimum length of glue retention||50mm|
|Cutting tolerance||±(0.002mm*L) (L=cutting length)|
|Stripping speed||1,500-2,500 per hour|
