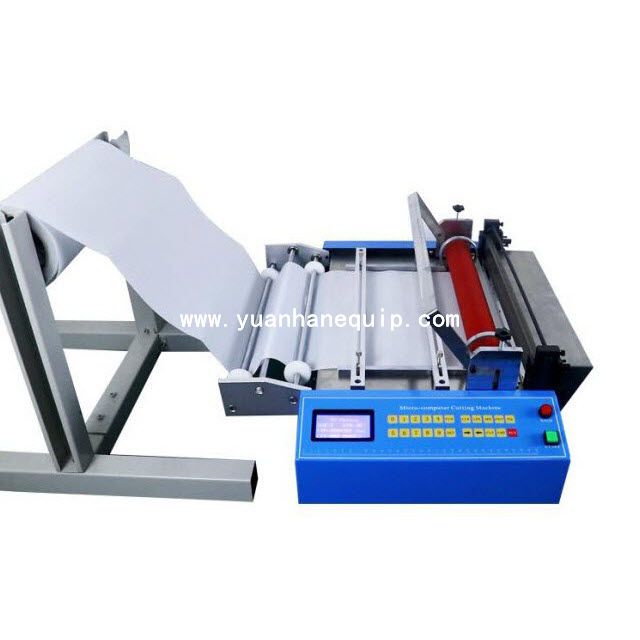

Fully Automatic Tube/Wire/Film Cutting Machine

Fully Automatic Tube/Wire/Film Cutting Machine

This fully automatic cutting machine is suitable for cutting of various tubular and banded materials, such as heat shrink tubes, fiberglass tubes, Teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

Model:	ZCUT-400S/ZCUT-500S/ZCUT-600S/ZCUT-700S
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ High-speed feeding, microcomputer program control, accuracy up to 0.1mm;

○ High efficiency and high accuracy: up to 150 times per minute;

○ Cutting type: Cold cutting with a durable cold knife;

○ Fully automatic cutting of various tubular and banded materials;

○ Suitable for cutting heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

○ Automatic operation: It works automatically only by setting length and quantity;

○ Automatic stopper: It stops automatically if materials run out during operation;

○ Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

○ We supply different models to fit your requests.

Model	ZCUT-400S	ZCUT-500S	ZCUT-600S	ZCUT-700S
Cutting length (mm)	1mm-99999mm	1mm-99999mm	1mm-99999mm	1mm-99999mm
Cutting accuracy (mm)	0.1mm	0.1mm	0.1mm	0.1mm
Max cutting width (mm)	1-400mm	1-500mm	1-600mm	1-700mm
Cutting speed(p/min)	150	150	150	150
Knife max temperature (℃)	cold knife	cold knife	cold knife	cold knife
Voltage/ frequency(V/Hz)	110V/220V50/60	110V/220V50/60	110V/220V50/60	110V/220V50/60
Rating Power(W)	1800W	2000W	2200W	2500W
Size(mm)	(L)430×(W)620×(H)480	(L)430×(W)810×(H)480	(L)650×(W)910×(H)480	(L)650x(W)1010x(H)480
Weight(NW)	50kg	60kg	65kg	70kg
