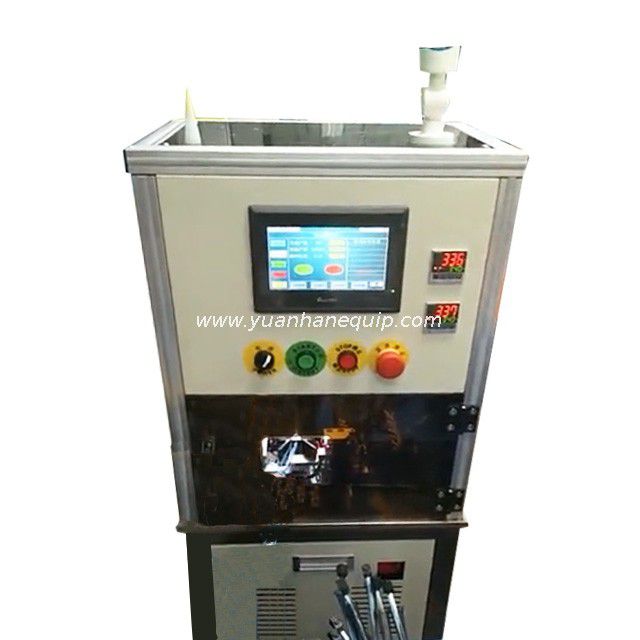

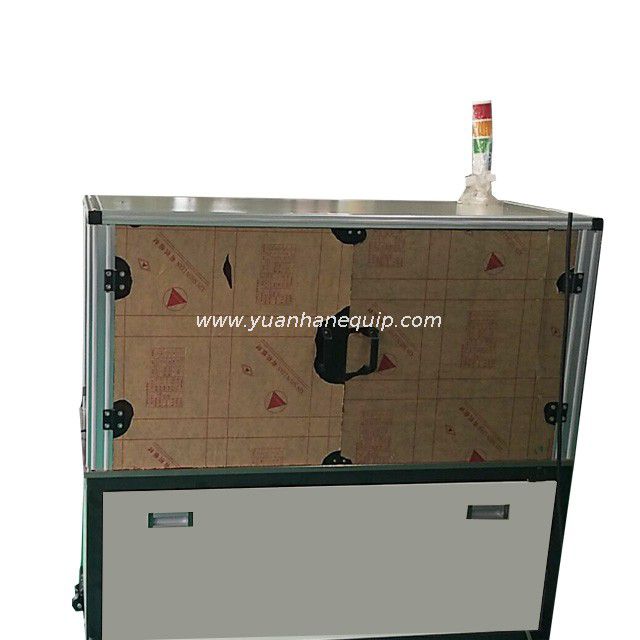

Automatic Wire Harness Braided Sleeving Wrap-around MachineAutomatic Wire Harness Braided Sleeving Wrap-around Machine

This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harness and cables.

Model:
  • YH-BZ1
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.

  • Fast speed, good threading effect, simple operation and precise cutting

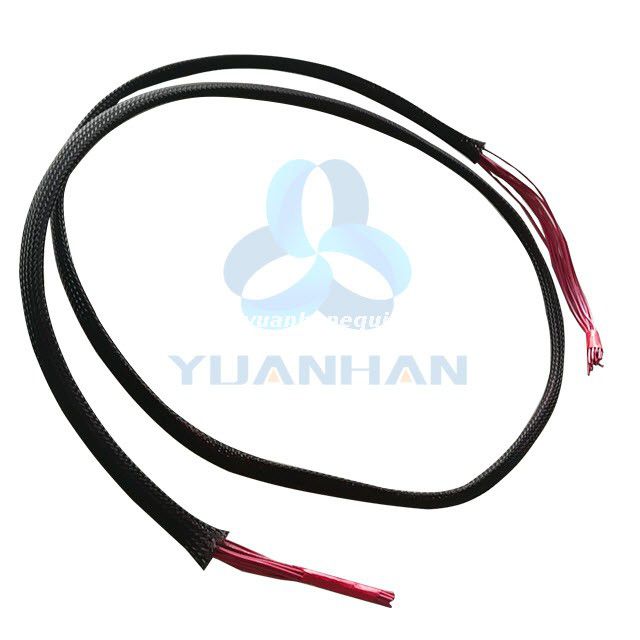

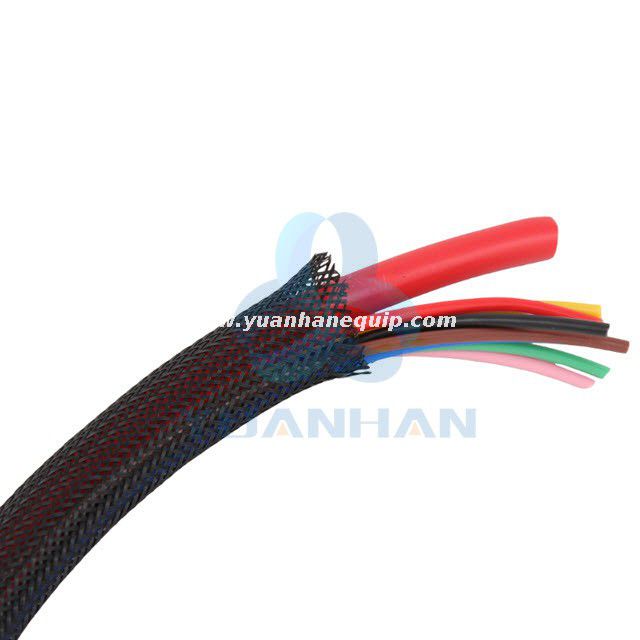

  • Suitable for wrapping-around different types of braided sleevings onto wire harness and cables

  • It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.

  • Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.

  • Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.

ModelYH-BZ1
Applicable sleevingfiber sleeving (woven mesh sleeving), melt cut materials
Applicable wire rangecustom type (the wire diameter does not exceed the pipe diameter)
Applicable guide tube rangediameter 12-25mm
Cutting accuracy±3MM
Cutting length

100mm-1200mm

Speedno less than 1000PCS/hour (depending on sleeving size and manual operation speed)
Powersingle phase AC 220V/50HZ
Energy consumption400W/Hr
Operating ambient temperature-5 ° C ~ +40 ° C
Relative humidity(40 ~ 90)% RH
Access gas source0.4~0.6MPA
Weightabout 80KG
Dimension500W*1230L*1115H(mm) (subject to actual production)
Note

Special materials can be customized.







×
