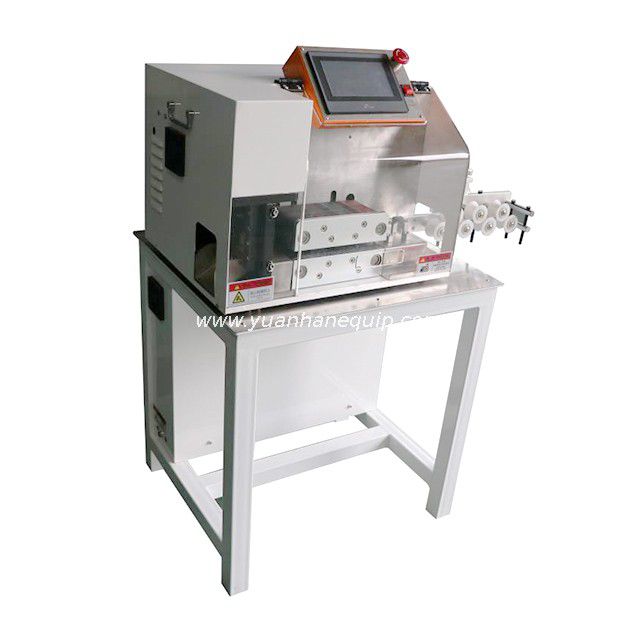

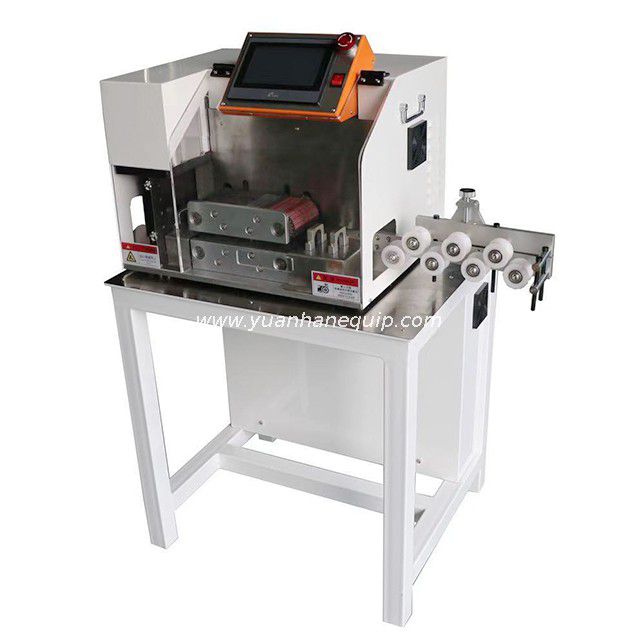

All-in-One Cable and Tube Cutting MachineAll-in-One Cable and Tube Cutting Machine

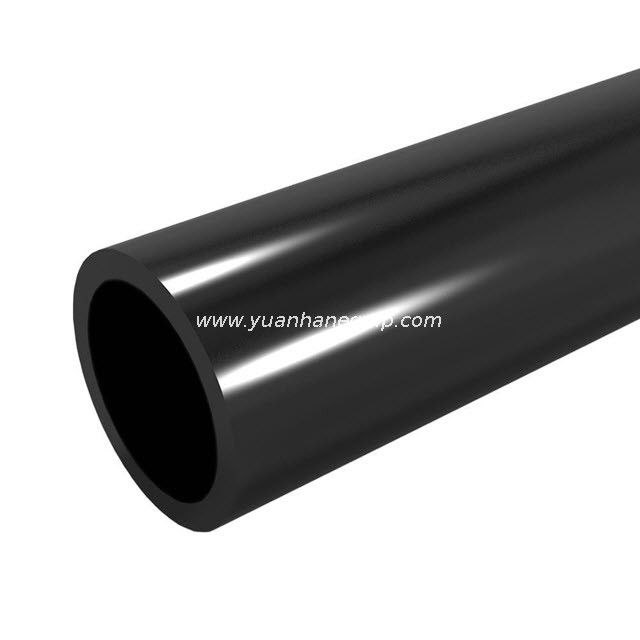

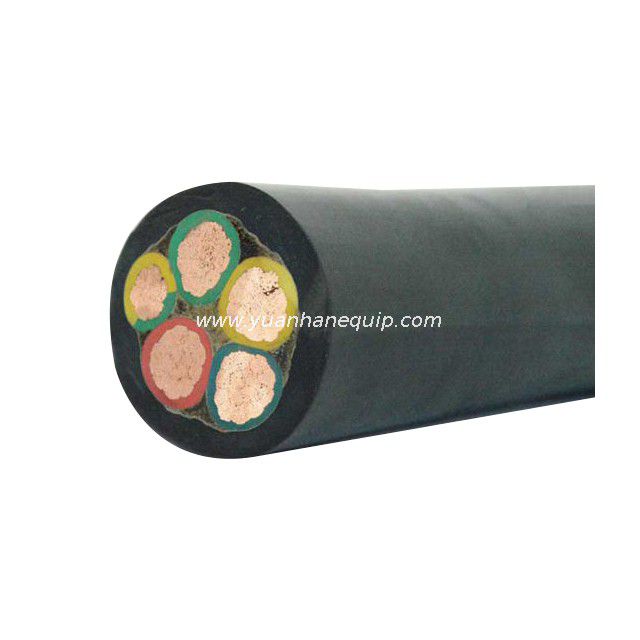

This is an all-in-one cable and tube cutting machine specially designed for cutting thick tubes and large cables up to 300 square mm. Featuring positioning function, it can process accurate cutting according to the set length.

Model:
  • YH-QC300
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This is an all-in-one cable and tube cutting machine specially designed for cutting thick tubes and large cables up to 300 mm2;

  • Featuring positioning function, it can process accurate cutting according to the set length;

  • Cutting diameter: 1-30mm, cutting width: 80mm.

ModelYH-QC300
Control systemPLC human machine interface
Cutting methodcylinder
Cutter stroke50mm
Voltage220V 50-60HZ
Air pressure0.5-0.7Mp
Power200W
Cutting diameter1-30mm
Cutting width80mm
Speed20-60 p/m(depending on length)
Size570x490x460mm
Weight70KG


×
