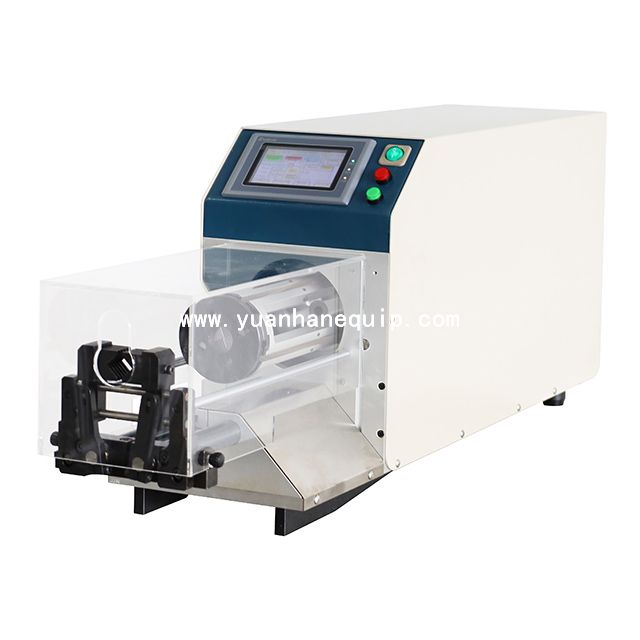

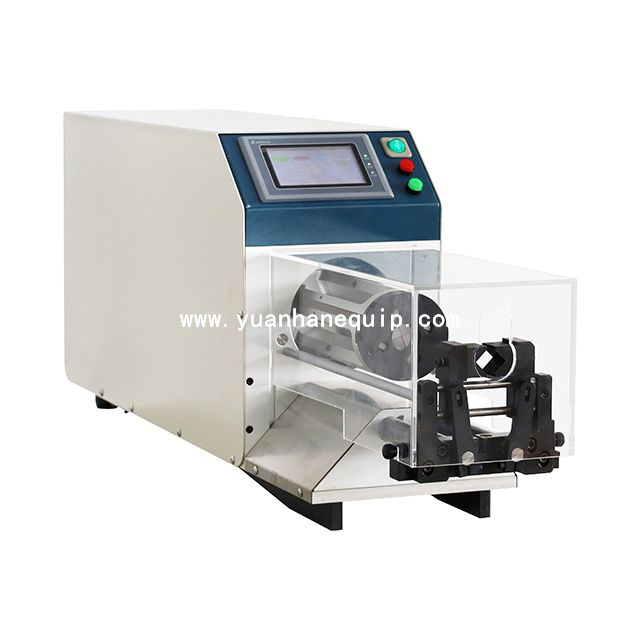

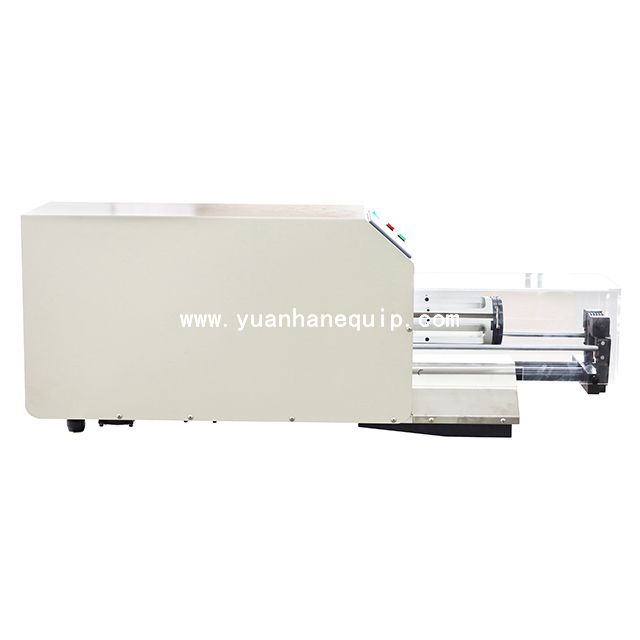

Coaxial Wire Stripping Machine

The coaxial wire stripping machine is mainly used for the processing of coaxial cables and special single wires.

Model:
  • YH-2515/YH-2520/YH-3515/YH-4520
Brand:
  • Yuanhan
Share to:
Features
Specifications

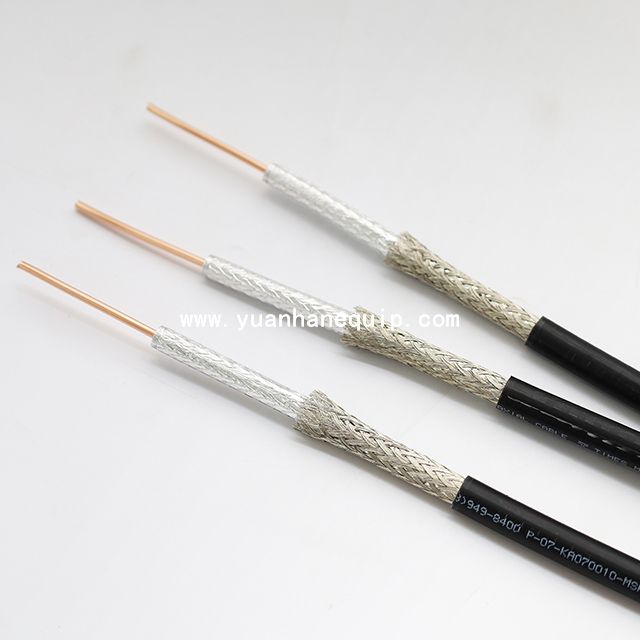

  • Suitable for stripping coaxial cables and special single wires

  • Easy-to-use LCD interface, rotary knife, simple tool change, easy setting of each function, control by foot pedal, safe and simple

Model YH-2515 YH-2520 YH-3515 YH-4520
Applicable wire

Coaxial cable,

car cable

Coaxial cable,

car cable

New energy cable,

thick cable

New energy charging gun
Peeling length ø0.1mm-ø150mm ø0.1mm-ø200mm 150mm 200mm
Peeling length setting unit 0.01mm 0.01mm 0.01mm 0.01mm
Cutting diameter range ø3.0-ø25mm  ø3.0-ø25mm  ø8.0-ø35mm  ø12-ø45mm
Max. stripping layer 9 layer 9 layer 9 layer 9 layer
Peeling method Rotary knife Rotary knife Rotary knife Rotary knife
Tool material Imported tungsten steel Imported tungsten steel Imported tungsten steel Imported tungsten steel
Power 630W 800W 1000W 1000W
Weight 45KG 50KG 60KG 70KG
Dimensions 920*220*400mm 1000*225*400mm 1040*280*550mm

1160*280*550mm

×
