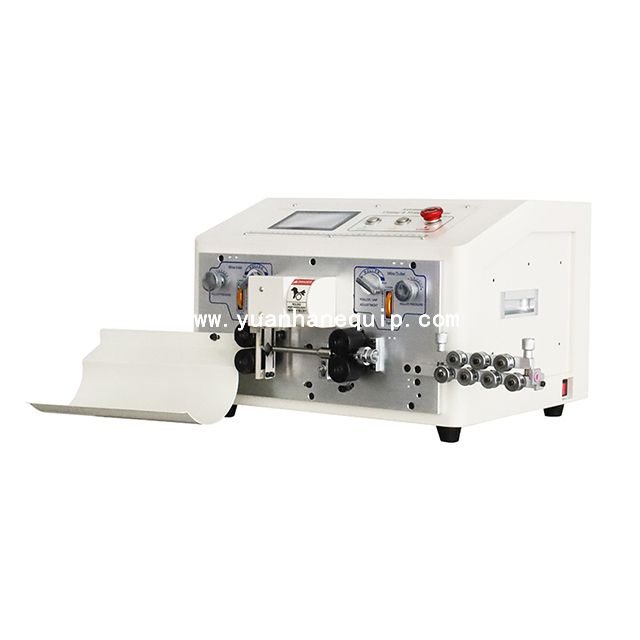

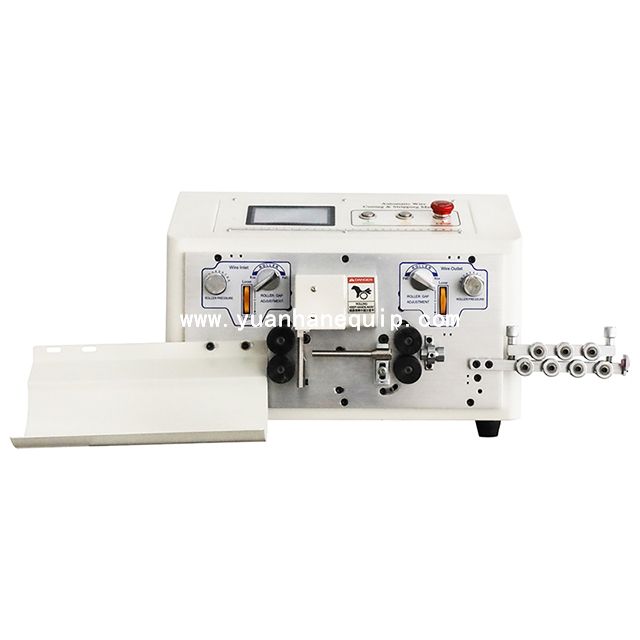

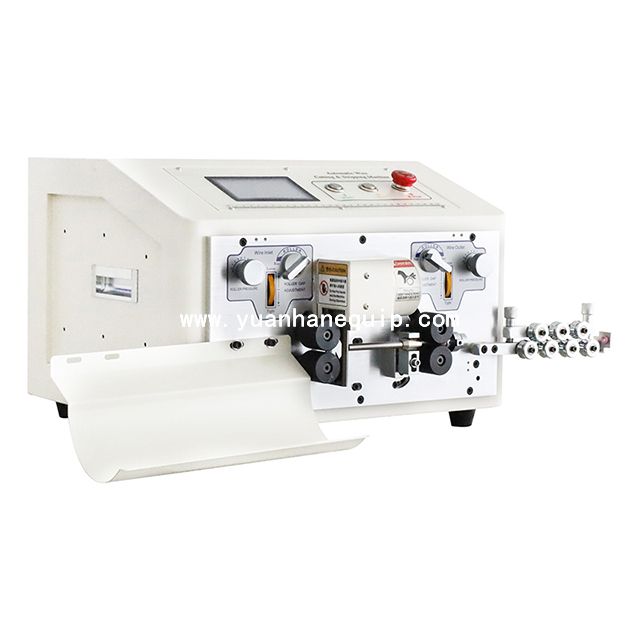

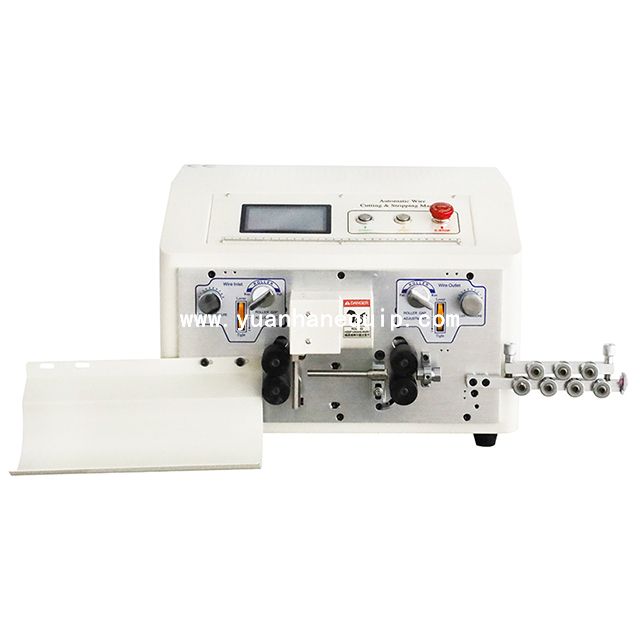

Round Sheathed Cable Cut and Strip MachineRound Sheathed Cable Cut and Strip Machine

This fully automatic wire cutting and stripping machine is mainly used to cut and strip sheathed cables, including single conductor round cables and multi-core round cables.

Model:
  • YH-HT2
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;

  • Suitable for processing single core wires and multi-core round sheathed cables;

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

  • One-time cutting and stripping, and splitting at the same time;

  • Saving labor and time and increasing productivity.

Model YH-HT2
Conductor Cross-Section 0.1-10 sqmm
Cutting Length 1-100,000mm
Cutting Tolerance (±0.0001×L)mm
Stripping Features stripping outer jacket
Stripping length Head: 0-150mm; Tail: 0-150 mm
Middle strip Max 3 Sections
Conduit Diameter φ13mm
Speed(pcs/h) L=100mm, 3,000–6,000pcs/h
Drive Method 4 wheels drive
Display Screen English/Chinese LCD Screen
Power 450W
Power Supply 110/220V 50/60Hz
Weight 47KG
Machine size 53*53*40CM
Optional accessories wire tray, rubber roller, wire straighter



×
