Kunshan Yuanhan Electronic Equipment Co., Ltd.

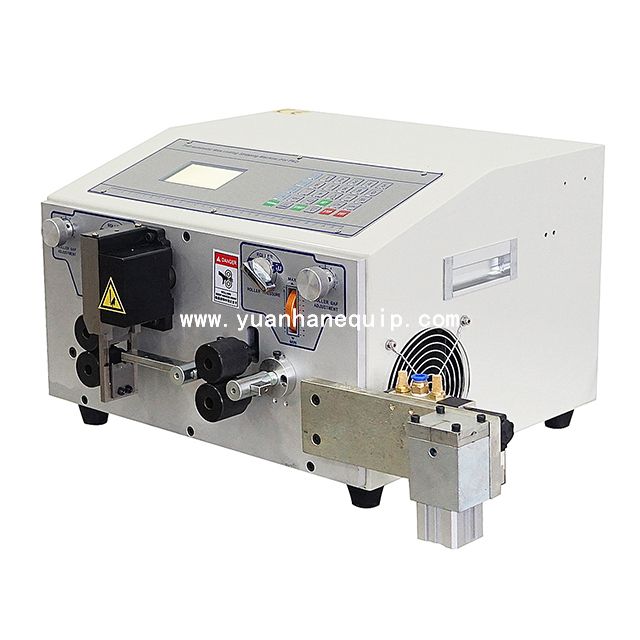

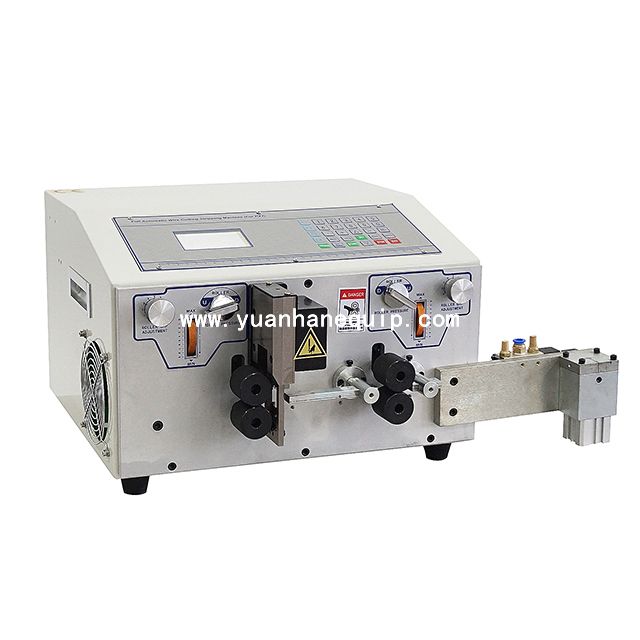

Flat Ribbon Cable Cutting and Stripping MachineFlat Ribbon Cable Cutting and Stripping Machine

This flat ribbon cable cutting and stripping machine is suitable for all kinds of flat cables (e.g. ribbon cables, multi-core flat cables, etc.). It can process flat cable cutting, splitting, half-stripping, and full stripping at one time.

  • YH-BPX2
  • Yuanhan
Share to:

○ This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;

○ Being able to process different kinds of flat cables;

○ LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

○ Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

○ One-time cutting and stripping, and splitting at the same time;

○ Saving labor and time and increasing productivity

Model YH-BPX2
Cutting length 1-100000mm
Cutting tolerance (0.0001xL)mm
Strip length

Head: 0-15mm

Middle strip  13 Sections
Wire range  2-12P
Conduit diameter 100x22x2.8mm
Speed (pcs/h) L=100mm, 3000-5000p
Power  450W
Voltage 220/110(V)
Gross weight  40kg
Optional accessories wire tray, rubber roller, wire straighter
