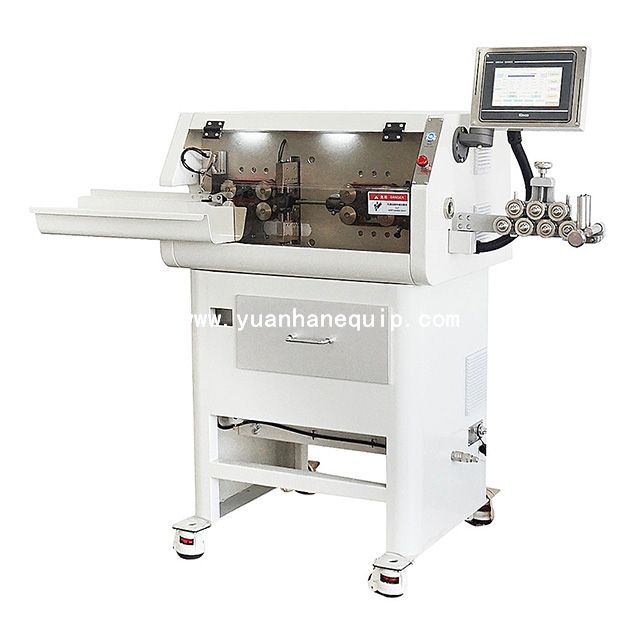

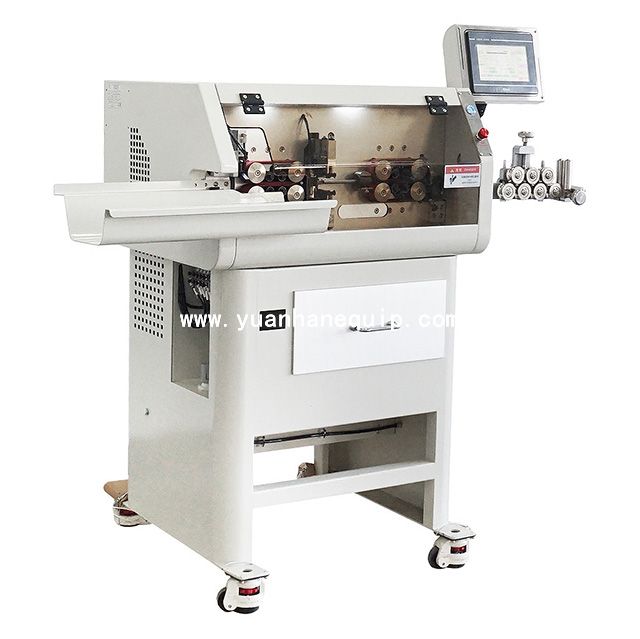

Multi-core Cable Cutting Stripping and Twisting MachineMulti-core Cable Cutting Stripping and Twisting Machine

This wire cutting stripping and twisting machine is able to process of multi-core jacket cables. It can strip outer skin and inner core skin simultaneously. The applicable wire sizes range from 6-30 sq mm.

Model:
  • YH-8030JXS
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: cutting stripping and twisting

○ Applicable wire sizes: 6-30 square mm

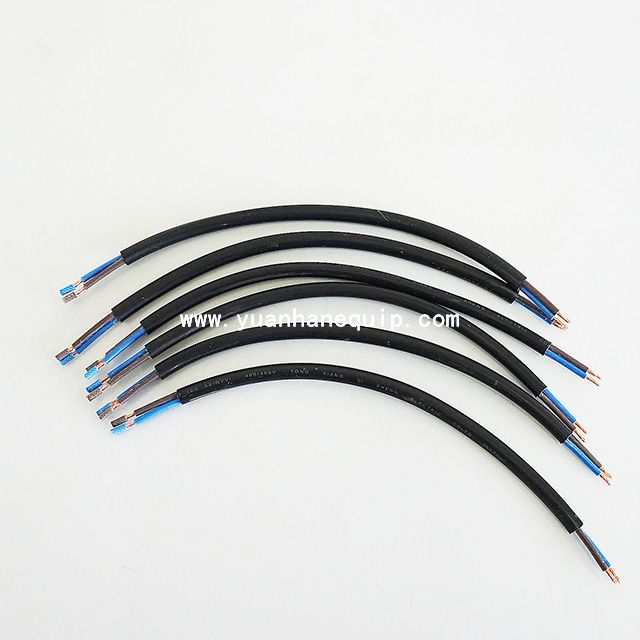

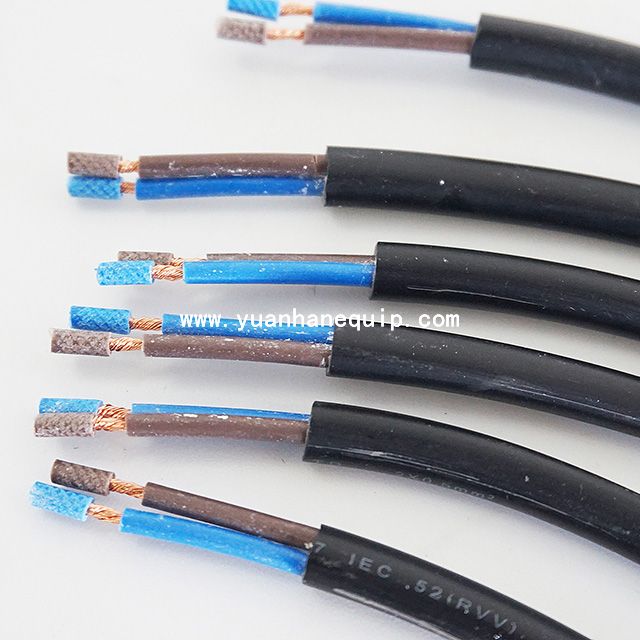

○ Strip outer skin and inner core skin of multi-conductor cables simultaneously

○ Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

○ Belt feeding wires, no embossing and scratches

○ Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm

○ Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm

Model YH-8030JXS
Display 7 inch true color touch screen
Function Cutting stripping and twisting
Head peeling MAX 120mm
Tail peeling MAX 240mm
Wire type Sheathed cables, PVC cables, etc.
Stripping range 6-30mm2
Cutting length 1mm-99999.9mm
Cutting tolerance within 0.002*L (L=cutting length)
Max. guiding pipe diameter Φ16
Tool material High quality imported high speed steel
Capacity 2300pcs/h
Remarks The machine can be customized for processing special cables, and the sample cable should be sent to us for test.



×
