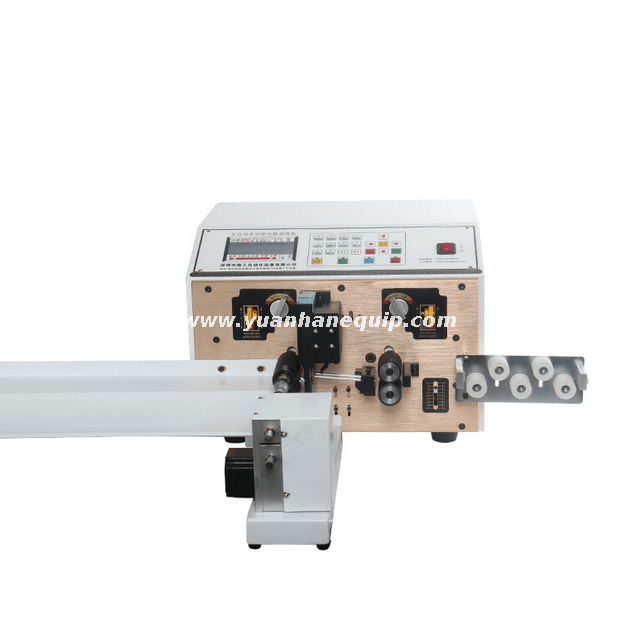

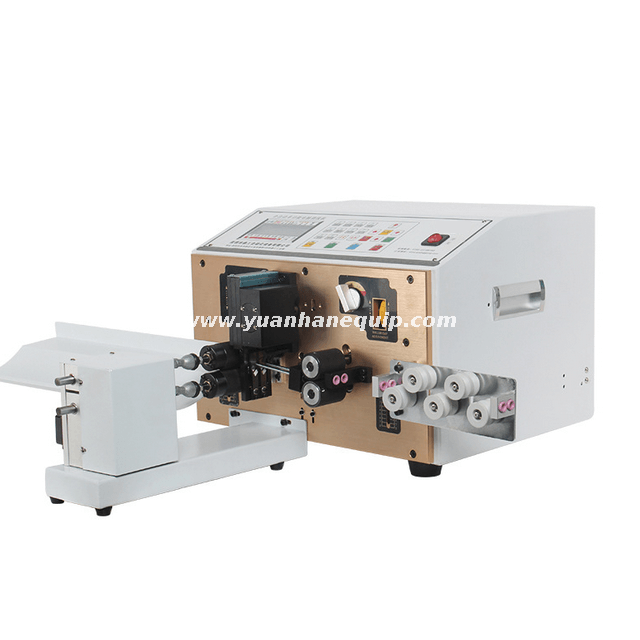

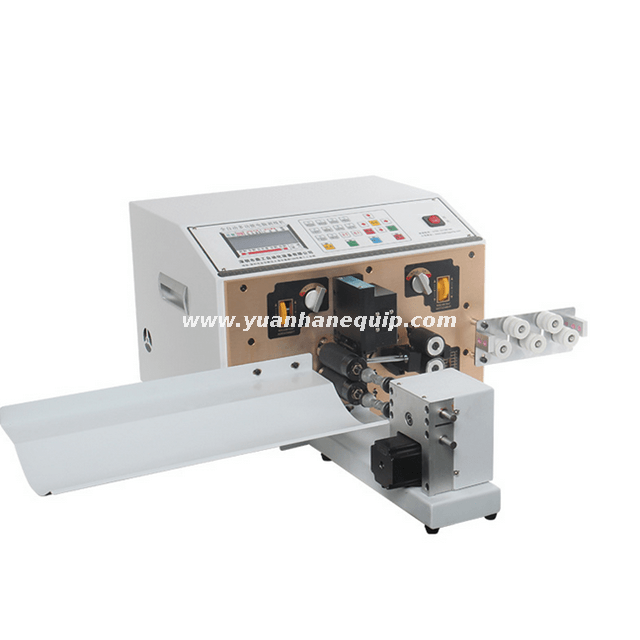

This fully automatic wire cutting and stripping machine is able to process 4 wires simultaneously, thus it’s working efficiency is 4 times than ordinary models.
|
Model:
|
|
|
Brand:
|
|

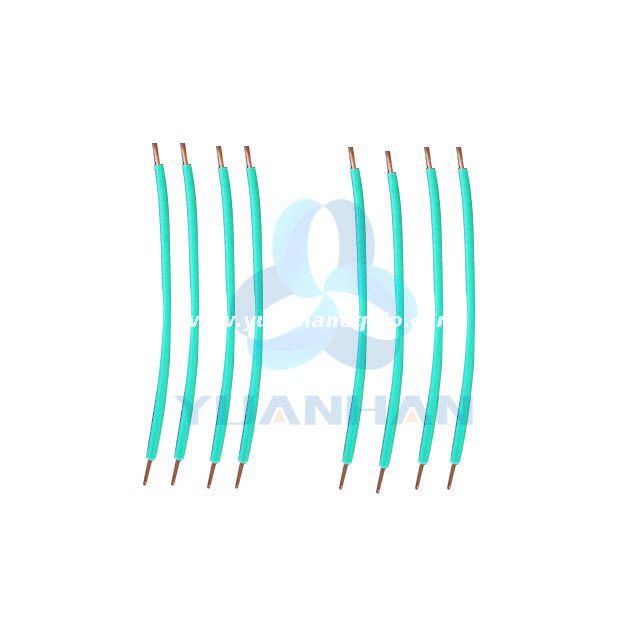

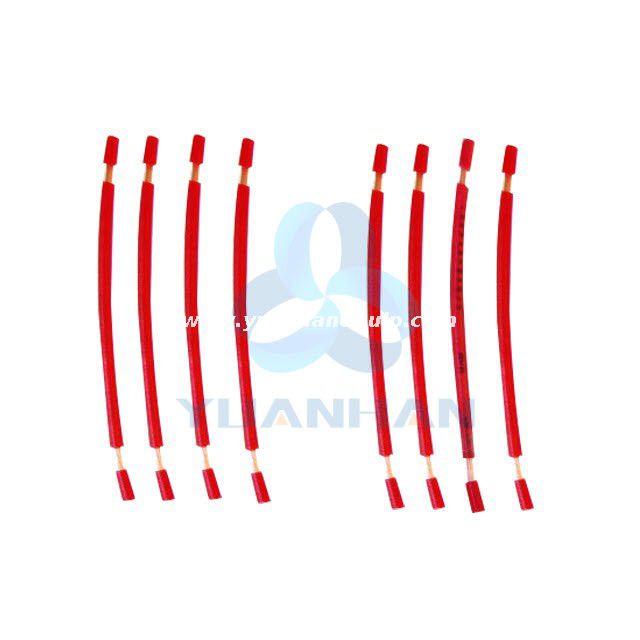

○ Main features: fully automatic wire cutting, full stripping and half stripping
○ The machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary models.
○ Applicable wires: electronic wires, silicone wires, Teflon wires, isolation wires, fiberglass wires, etc.
| Model | YH-BSX |
| Stripping length | head 0.1-35mm, tail: 0.1-60mm |
| Cutting length | 0.1-9,999mm |
| Cutting accuracy | 0.002*Lmm |
| Stripping speed | 5,000-6,000pcs |
| Dimensions | 450*720*360 |
| Applicable wires | AWG#12-AWG32 (0.1-2.5mm² ) |
| Power supply | AC110V/220V, 180W |
| Weight | 39KG |
