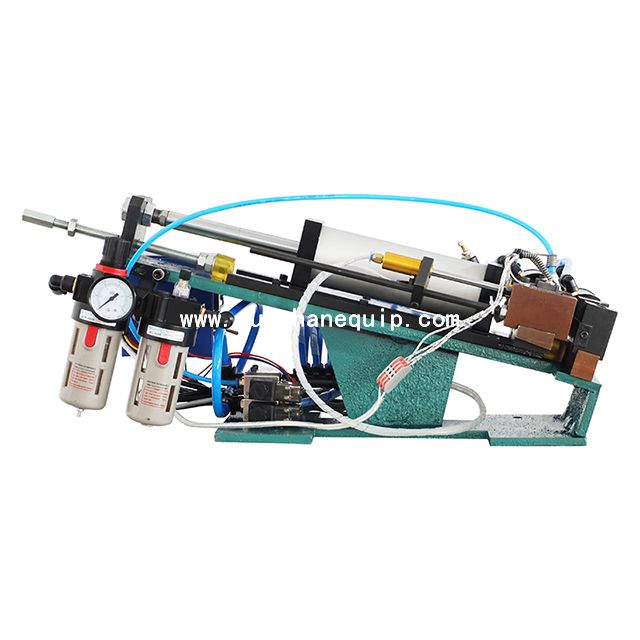

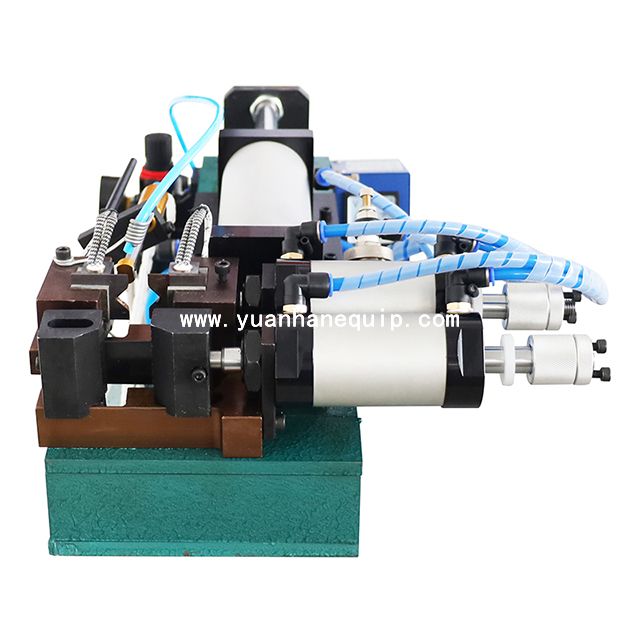

This wire hot stripping machine is mainly used for processing of braided wire, nylon wire, shielded wire and other wires that cannot be processed well by cold stripping. The stripped wires are clean and not scattered.
|
Model:
|
|
|
Brand:
|
|
○ Gas-electric design, low noise
○ Oblique back design, ergonomic
○ Double-acting cylinder, no spring breaks
○ Equip with a heating system make cutter to a suitable temperature before cutting and stripping the wire
○ Adjustable structure to adjust according to wire diameter
○ Other structure and functions are the same as ordinary cold stripping machines, and can be used as cold stripping machines without heating
| Model | YH-305R | YH-310R | YH-315R |
| Strip diameter | 2-7mm | 2-12mm | 2-18mm |
| Strip length | 2-50mm | 2-100mm | 2-150mm |

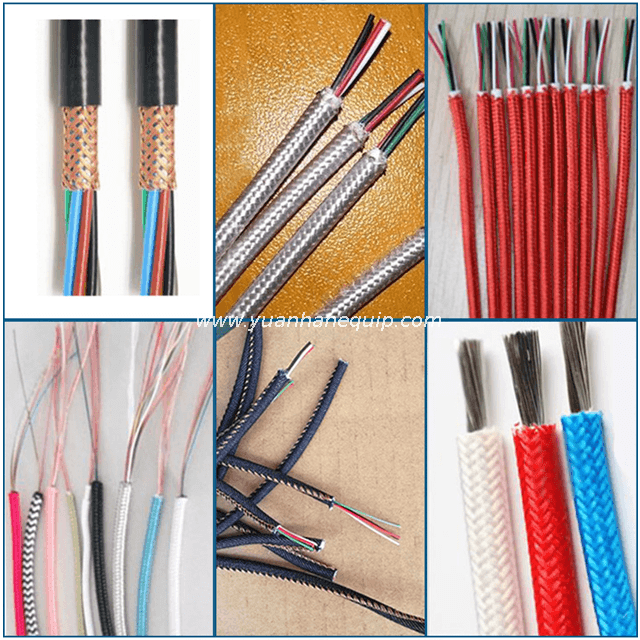

| Suitable wire type | Braided wire, nylon wire, multi-core sheath wire | ||
| Cutter material | High temperature resistant material | ||
| Heating system | Max.400 degree adjustable | ||
| Air pressure | 0.3-0.7Mpa | 0.4-0.7Mpa | 0.4-0.8Mpa |
| Voltage | 220V/50Hz | ||
| Weight | 20kg | 25kg | 30kg |
