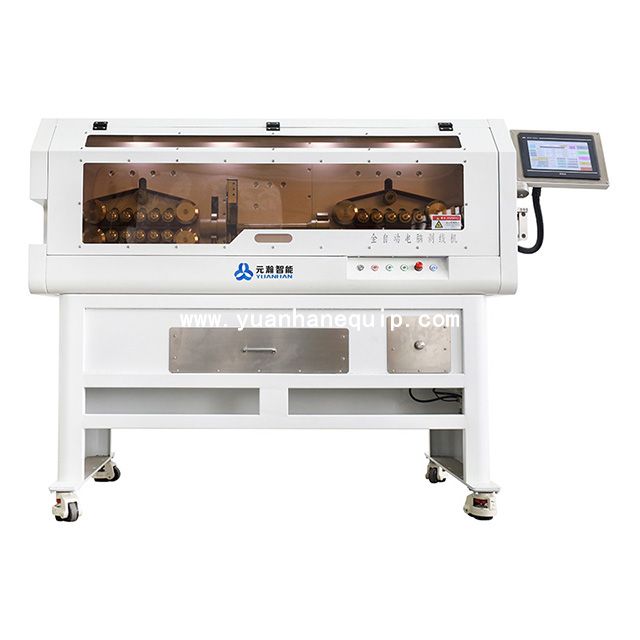

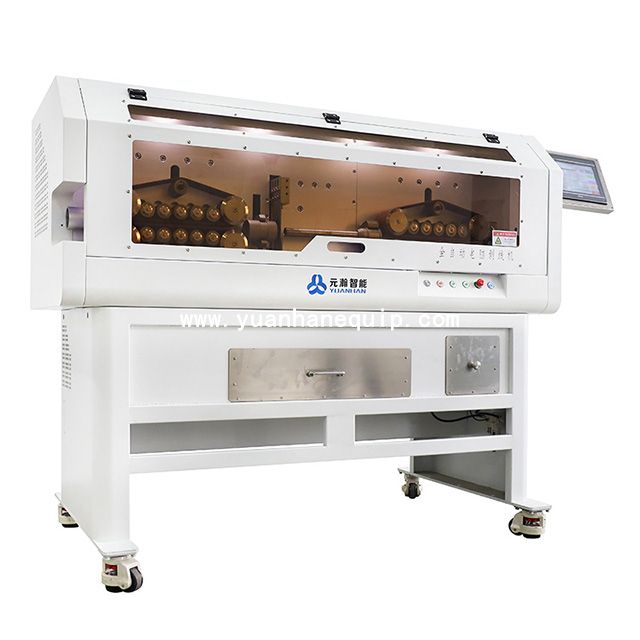

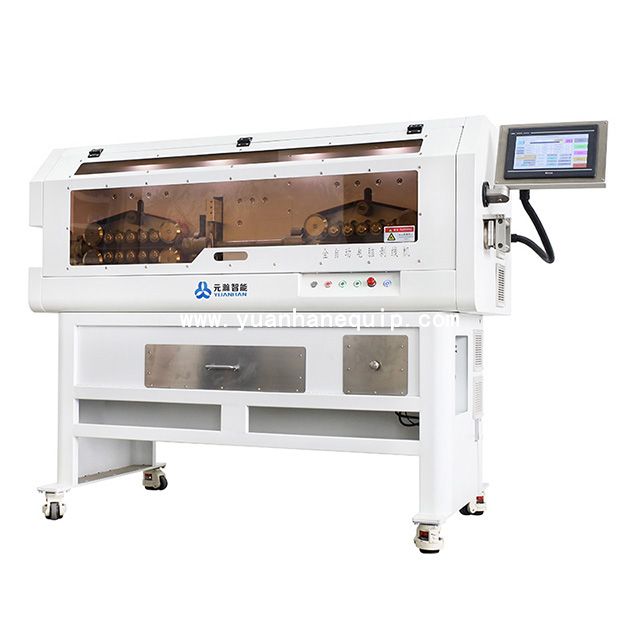

Heavy-duty Large Cable Cutting Stripping MachineHeavy-duty Large Cable Cutting Stripping Machine

This large cable stripping machine is specially designed to process hard-to-peel cables, such as new energy charging pile harnesses, charging gun harnesses and new energy high-voltage shielded wires. The applicable wire sizes range from 30 to 300 square mm.

Model:
  • YH-8300
Brand:
  • Yuanhan
Share to:
Features
Specifications

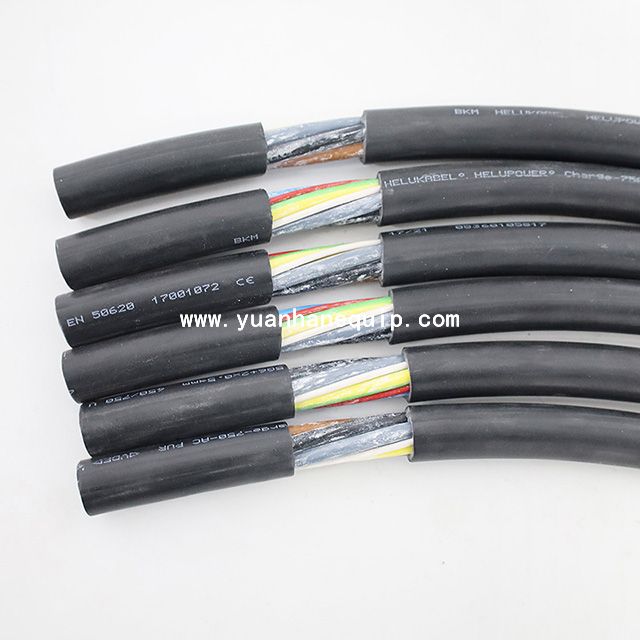

○ Process hard-to-peel cables, such as new energy charging pile harnesses, charging gun harnesses and new energy high-voltage shielded wires

○ Applicable wire sizes: 30 to 300 mm2

○ Use special axial positioning and advanced rotary tool holder to improve accuracy and speed

○ Induction menu dialogue control system makes it easy to set parameters

○ Double blades to replace without calibration

○ Automatically identify machining centers to greatly increase productivity

○ Self-aligning and motor driven enhance the program control

○ Digital display cutting wire diameter

○ The high quality imported pneumatic components make it more energy efficient, more stable and more durable

Model YH-8300
Display 10-inch true color touch screen
Features Multi-station skinning (V knife/round knife piercing)
Wire type Wires, sheathed cables, etc.
Stripping range 30-300 mm2
Cutting length 10mm-99999.99mm
Cutting tolerance Within 0.002*L (mm) (L=cutting length)
Stripping length

Front stripping:1-1000mm(head)

Tail stripping::1-300mm (Tail)

Maximum diameter of the catheter Φ15~50mm
Tool material High quality imported high speed steel
Capacity 100-700pcs/h (depending on the length and size of the wire)
Power supply 220V 50HZ
Power 11.7KW

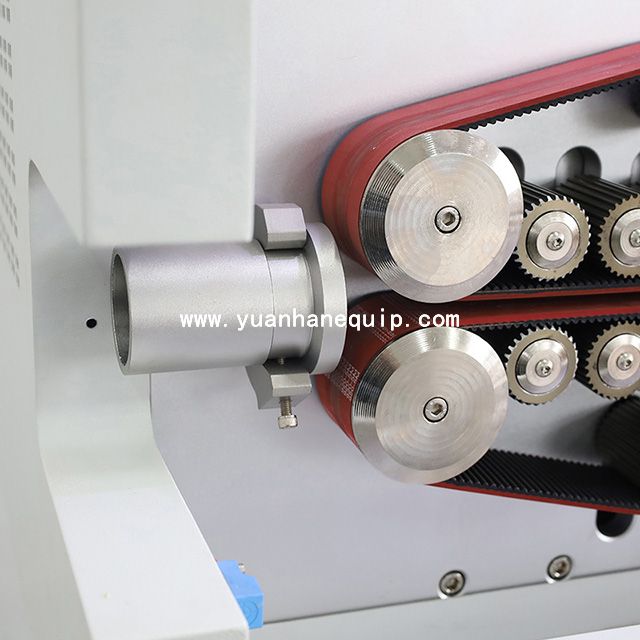

Wire feed 32 wheels, independent servo drive for each group
Knife rest Double servo and double screw



×
