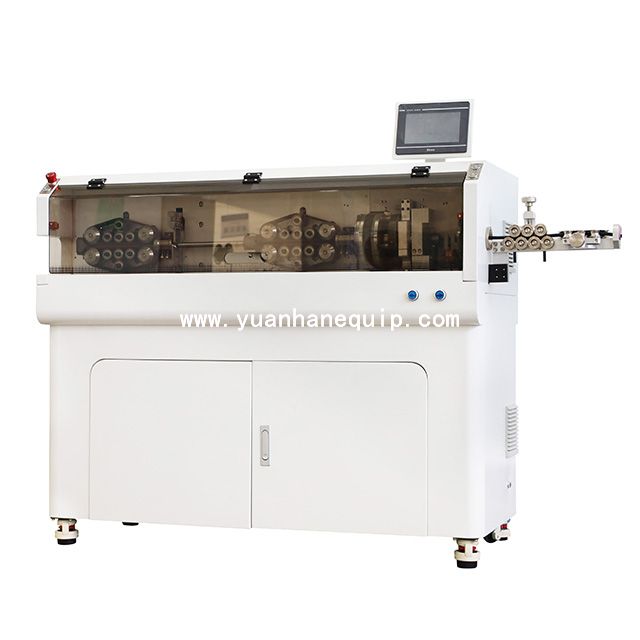

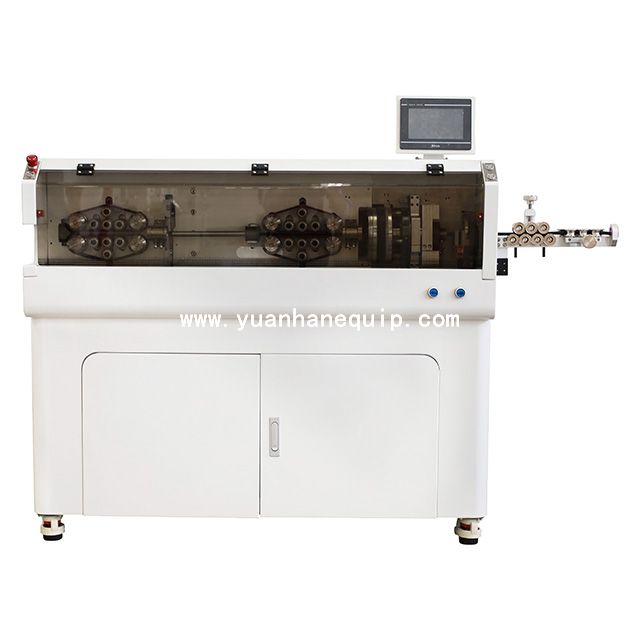

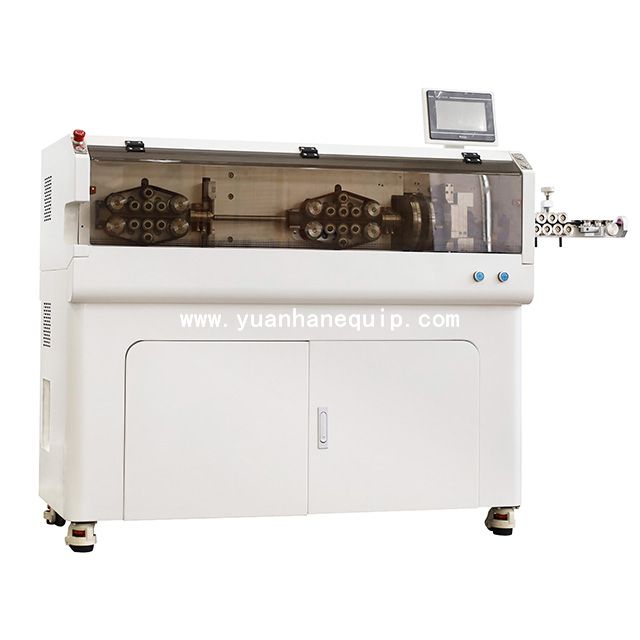

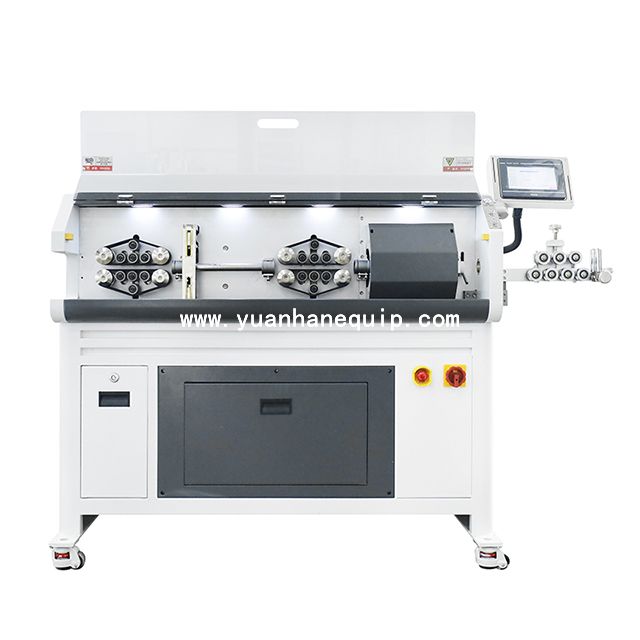

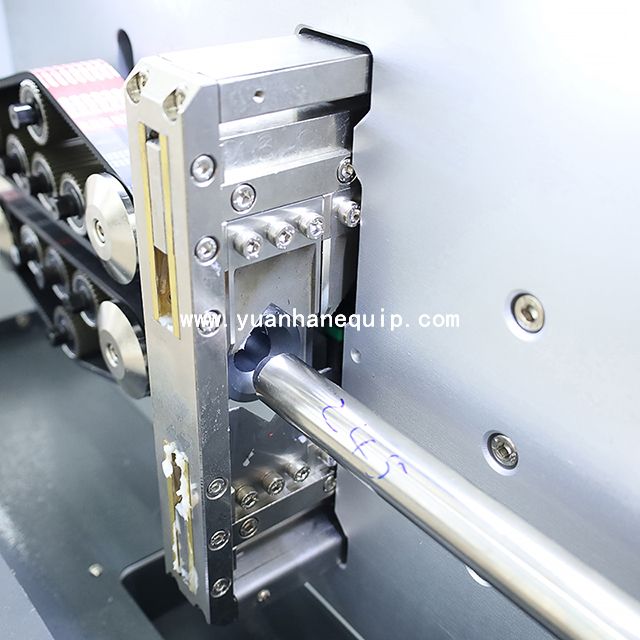

Large Gauge Cable Cutting and Stripping Machine with Rotary Knife

Large Gauge Cable Cutting and Stripping Machine with Rotary Knife

This large gauge cable cutting and stripping machine is mainly used for processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. It can easily process thick cables up to 120 Sq mm.

Model:	YH-8120X
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ This machine is a new type of cable processing equipment controlled by microcomputer. It is mainly used for the processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. The introduction of this model completely solves the processing problem of large square wire and multi-core sheathed cable

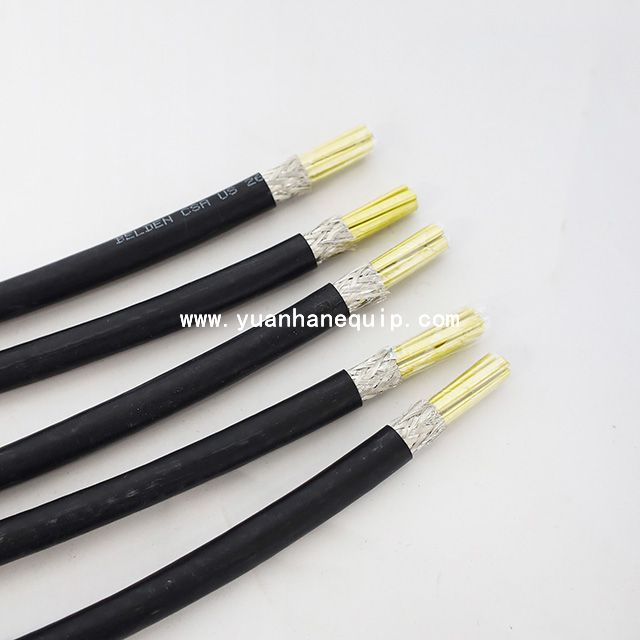

○ Automatically cut and strip the insulation at both ends, and at the same time carry out multi-layer stripping processing

○ Industrial-grade control chip with high-precision servo drive enables the machine to run stably at high speed

○ PLC control system, touch screen operation mode

○ Automatic adjustment of wire diameter, no need to change tools for different specifications of cable

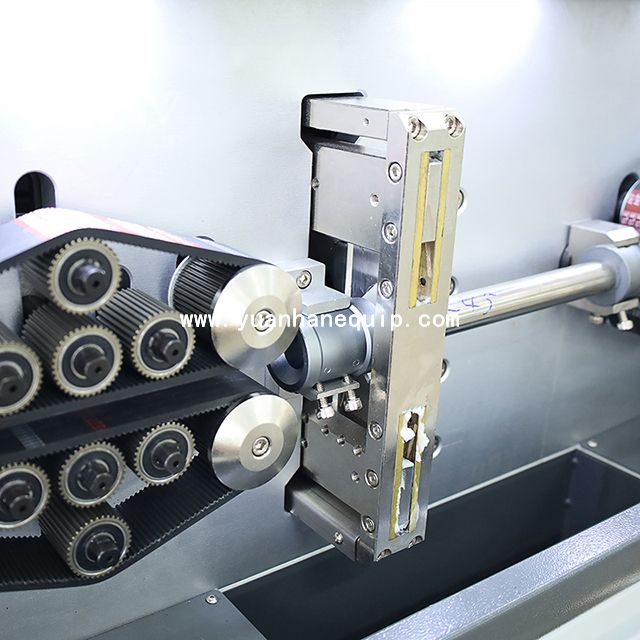

○ Belt drive, no indentation

○ Easy to process cables up to 120 mm2, and strong power is the guarantee of work efficiency

Model	YH -8120X (rotary knife)
Display method	7-inch true color touch screen
Wire type	PVC cables, sheathed wires, etc.
Stripping range	10-120mm²
Cutting length	150mm-99999.99mm
Cutting tolerance	Within 0.002*L (mm) (L=cutting length)
Stripping length	Front stripping: front end full removal: 1-300mm, front half stripping 1-1000mm Tail stripping: front end full stripping 1-150mm, tail half stripping 1-500mm
Maximum diameter of the catheter	Φ7～30mm
Tool material	High quality imported high speed steel
Productivity	100-700pcs/h (depending on the length and size of the wire)
Power supply	220V 50HZ
Power	4KW
Drive mode	32-wheel drive, full servo motor

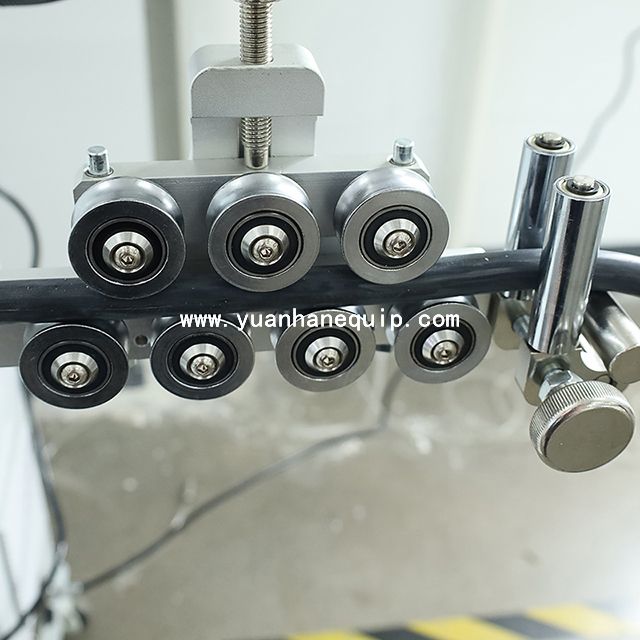

Wire feeding method	Belt feeding line, no embossing on the cable without scratches
Remarks	Sample wire test is required
