Pneumatic Rotary Wire Peeling MachinePneumatic Rotary Wire Peeling Machine

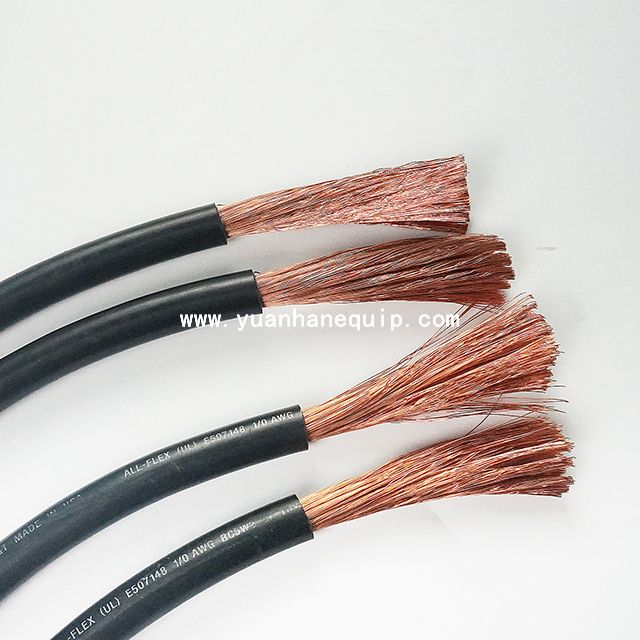

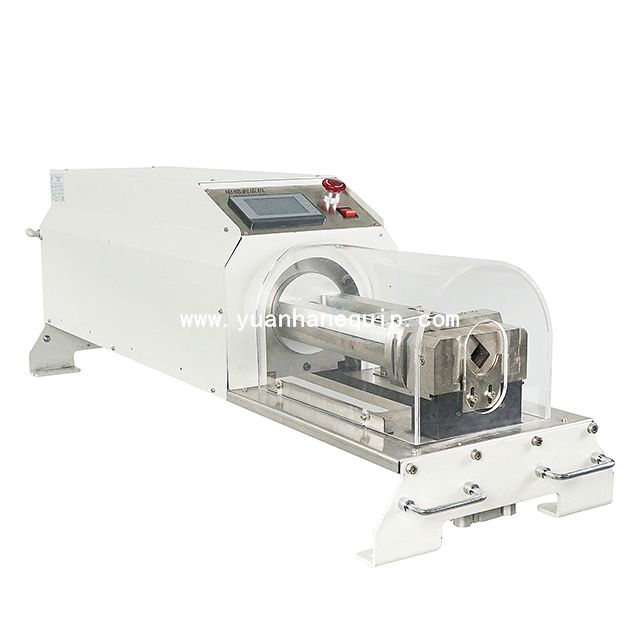

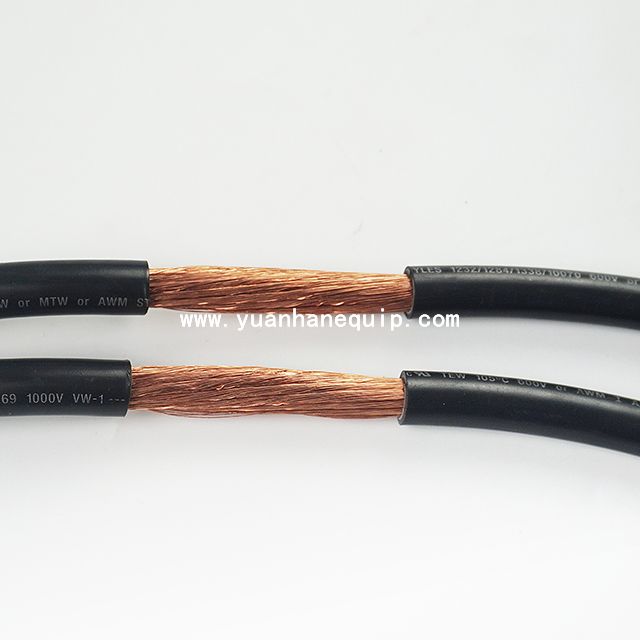

This rotary knife pneumatic wire peeling machine is mainly used for stripping large cables. It is a special machine for processing of new energy DC cables. Maximum wire diameter is 50 mm, and max stripping length is 100 mm.

Model:
  • YH-300
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This machine is mainly used for stripping large cables. It is a special equipment for processing of new energy DC cables;

○ High precision rotating and strong peeling;

○ Maximum wire diameter 50mm, max length 100mm;

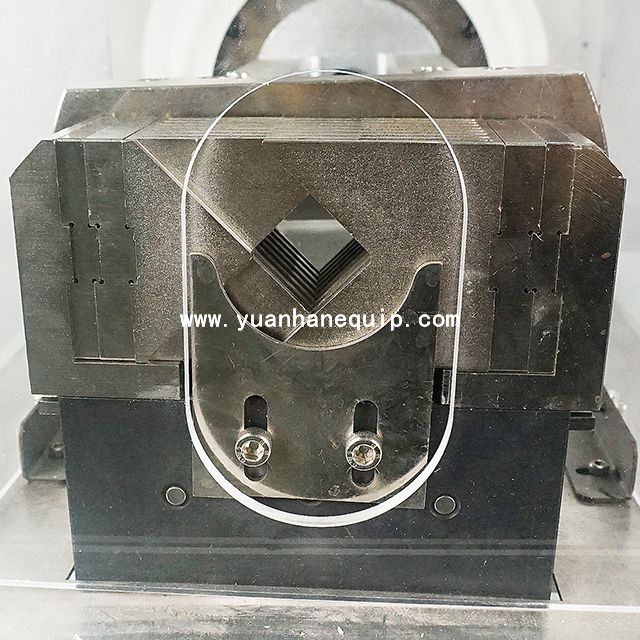

○ Adopt double blade, change without correction, automatically find the machining center, which greatly increases the productivity.

ModelYH-300
Control systemDedicated controller
Stripping methodRotary peeling
Stroke0-300mm
Voltage220V 50-60HZ
Air pressure0.5-0.7Mp
Power200W
Stripping diameterø10-ø50mm
Stripping tolerance±0.2
Speed20-40pcs/min
Size1000x450x350mm
Weight80KG


×
