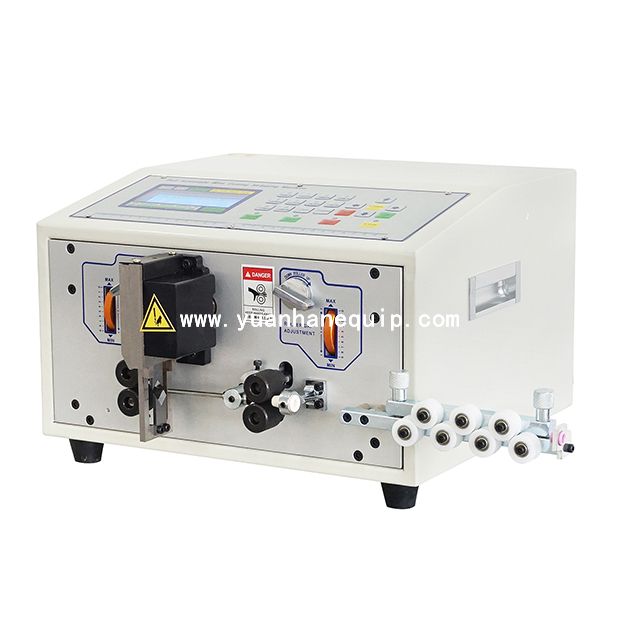

Small Gauge Wire Cutting Stripping MachineSmall Gauge Wire Cutting Stripping Machine

This small gauge wire cutting and stripping machine is economical, compact and lightweight. Processing wire range: 0.1-4.5 sq mm (AWG14#-AWG32#).

Model:
  • YH-BSD
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more

  • Processing wire range: 0.1-4.5 sq mm (AWG14#-AWG32#)

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys

  • The cutting length can be set according to request

  • One-time cutting and stripping, saving labor and time and increasing productivity

Model YH-BSD
Cutting length 1-9999mm
Cutting tolerance (0.2±0.002×L)mm
Stripping length Head 0-35, Tail 0-15mm

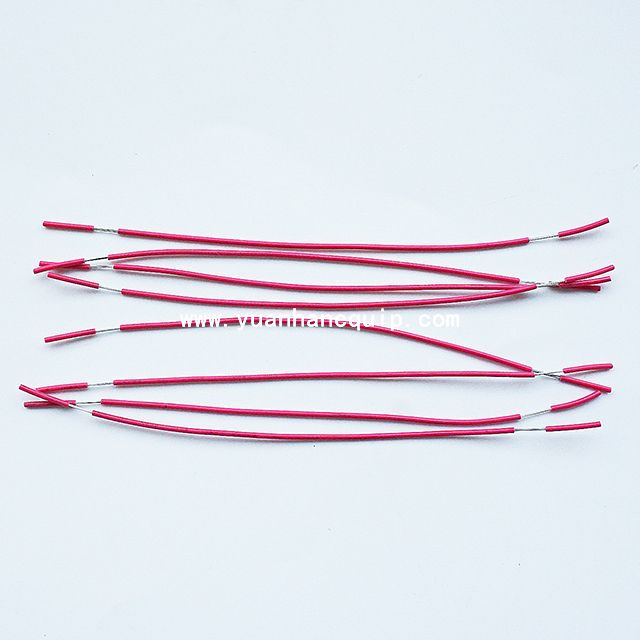

Middle strip 11 sections
Wire range

0.1-4.5mm2(AWG14#-AWG32#)

Conduit diameter ¢6
Speed

3000-8000pcs/h (L=100mm)

Power 200(W)
Voltage 220/110(V)
Gross weight 32kg
Dimension 390*350*255mm
Optional accessories wire tray, rubber roller, wire straighter






×
