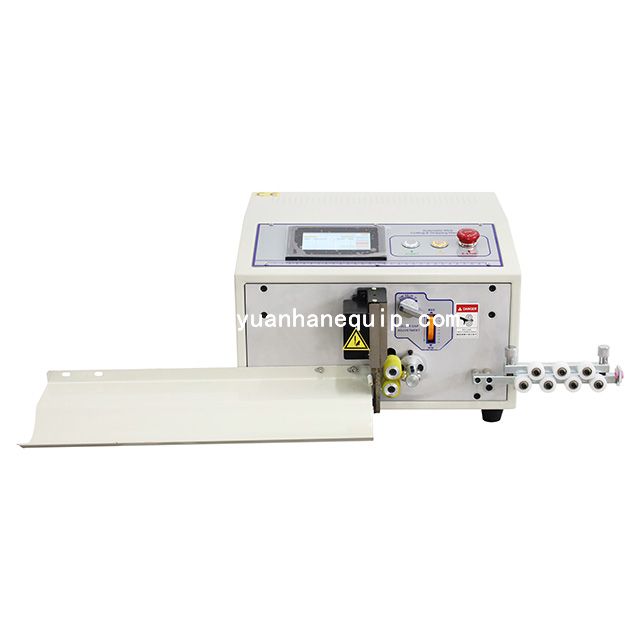

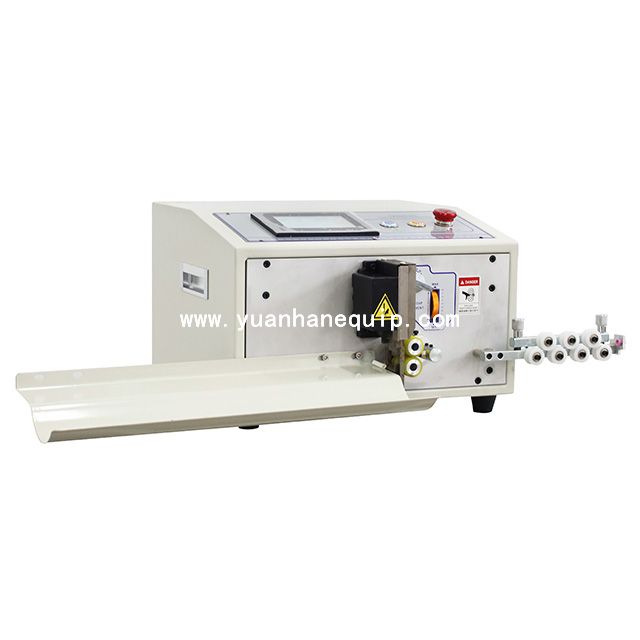

Wire and Hollow Tube Cutting MachineWire and Hollow Tube Cutting Machine

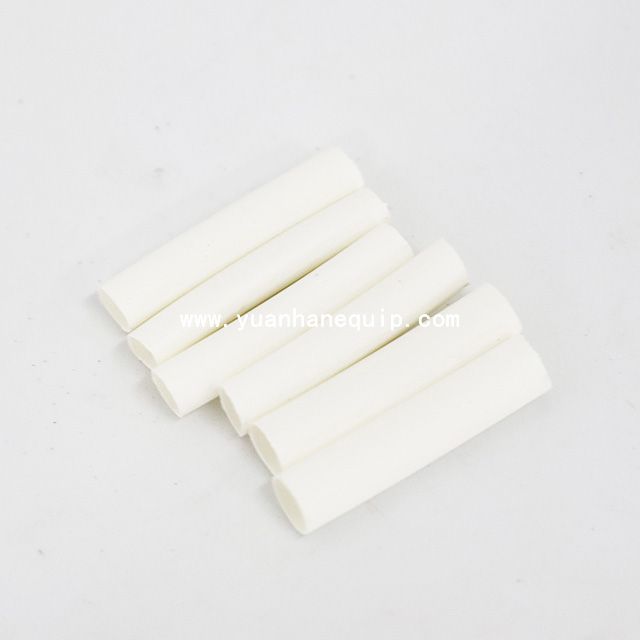

This automatic fixed length cutting machine is suitable for cutting hollow tubes, yellow wax tubes, heat shrinkable tubes, casing, electric wires, cables and much more.

Model:
  • YH-BQG
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This is a fully automatic cutting-to-length machine.

  • It is suitable for cutting hollow tubes, yellow wax tubes, heat shrinkable tubes, casing, electric wires, cables and much more.

  • The cut is smooth, burr-free, and free of deformation.

Model YH-BQG
Cutting Materialhollow tubes, yellow wax tubes, heat shrinkable tubes, casing, electric wires, cables, etc.
Input VoltageAC220/110V; 50Hz/60Hz
Power200W
Display MethodChinese & English LCD display
Cutting Length1mm~9,999mm
Cutting DiameterHollow tube: 14mm, wire: 4mm
Cutting Tolerances± (0.002xL)mm
Tool Materialhard tungsten steel
Cutting Speed10,000 pcs/H (L=100mm)
Drive MethodTwo-wheels drive
Weight30kg
Dimension53*51*37cm



×
