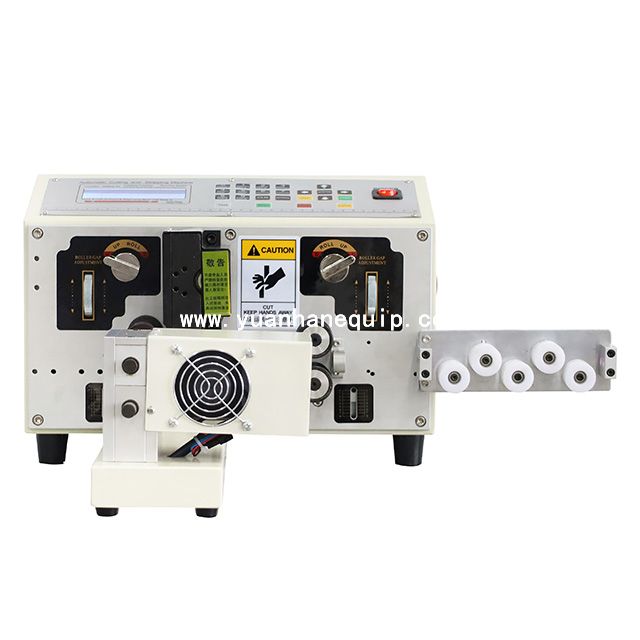

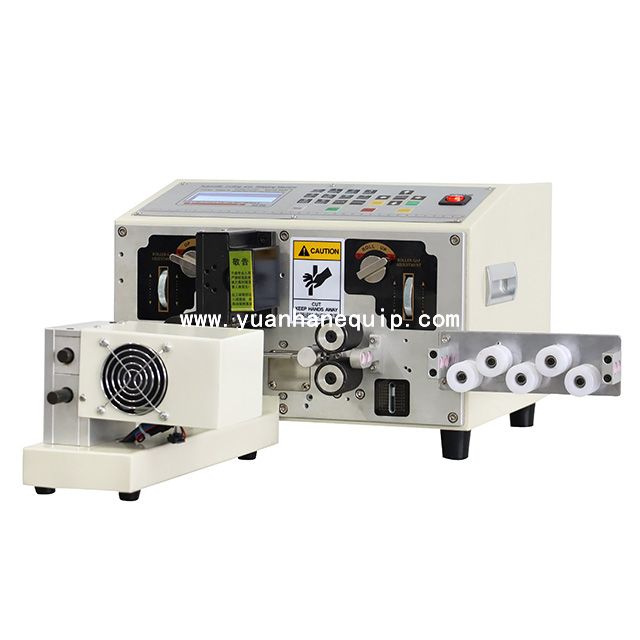

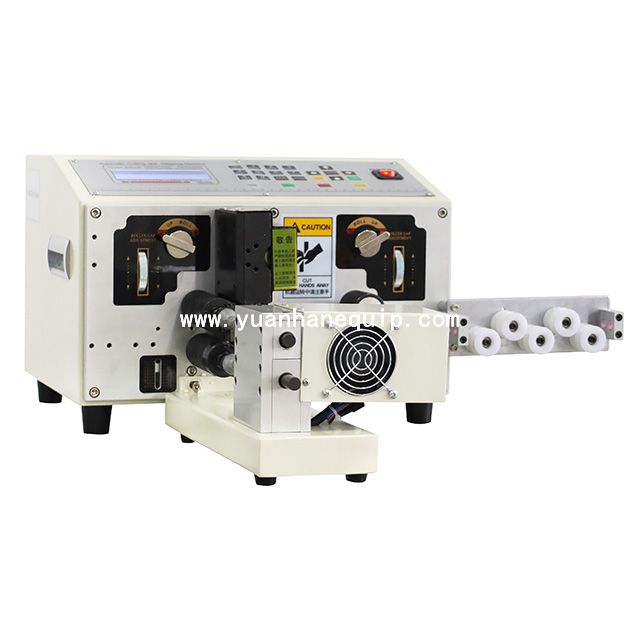

Fully Automatic Wire Cutting Stripping and Twisting MachineFully Automatic Wire Cutting Stripping and Twisting Machine

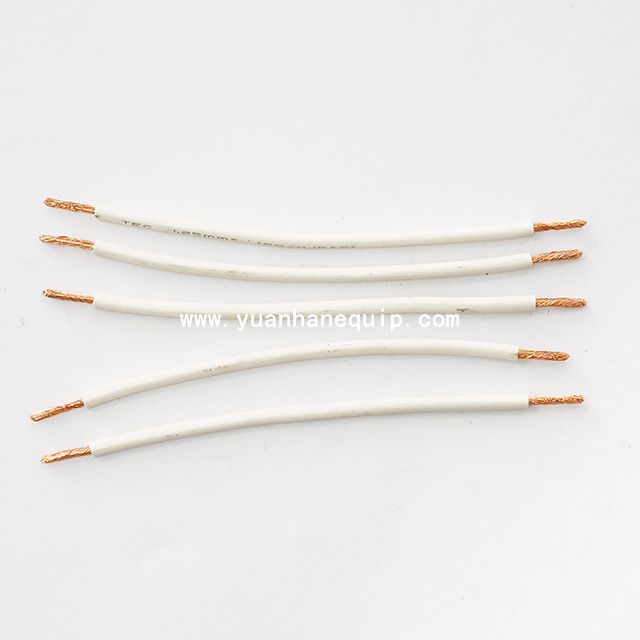

This fully automatic wire cutting stripping and twisting machine can complete wire cutting, half stripping, multi-section partial stripping and wire twisting at one time. It is able to process two cables simultaneously.

Model:
  • YH-8003S
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine is mainly used for processing electronic wire, silicone wire, Teflon wire, isolation wire, coaxial wire, sheathed wire, etc.

  • Wire cutting, half stripping, multi-section partial stripping and wire twisting can be completed at one time.

  • Process two cables simultaneously.

ModelYH-8003S
PowerAC 110V/220V 50/60HZ
Power consumptionMIN:20W MAX:220W
Cutting length0.1-99999.99mm
Stripping length0.1-30mm
Twisting length0.1-20mm
Cutting accuracychanging range: 1mm+cutting lengthx0.2%
Applicable wire sizeAWG22-28AWG
Dimensions755mmx650mmx305mm
Weight45KG



×
